Location:
York, PA
Price:
$7,950 USD
Model:
#3

Specifications

Condition:
used
Year:
1960
Stock number:
15053
Size:
#3
Subcategory:
Grinders, jig

Description

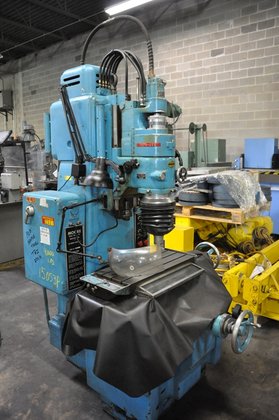

#3 MOORE JIG GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $7,950.00
Stock # 15053-P
Serial # G229
Model # 3
New Date: 1960
Table Size: 11" x 24"
Longitudinal Table Travel: 18"
Cross Table Travel: 11"
Spindle Head Vertical Travel: 12-5/8" (Manual)
Spindle Travel: 3-5/8" (Power)
Distance Table to Spindle: 2" Min. to 18" Max.
Center of Spindle Back to Column Ways: 10"
Center of Spindle Back to Below Column Ways: 13-1/2"
Variable Spindle Rotation Speeds: 25 to 225 RPM
Variable Spindle Feeds: 2 to 120 SPM
Range of Hole Sizes That Can Be Ground: 1/64" to 3-1/2" Dia.
Max. Dia. of Hole Ground with Extension Plate: 13-1/2" (NOT SUPPLIED)
EQUIPPED WITH:
(1) Grinding Head, Speed Rate Unknown
(1) Machine Work Light
Nylon Way Cover All Around Table
Hard Square Box Style Ways in Good Condition
Manually Adjustable Grinding Head
Spindle Temperature Gage
Micrometer Adjustable Head Carrier Stop
Adjustable Air Control of Grinding Head
(5) Grinding Head Rotation Speeds,...
