Location:
York, PA
Price:
$4,950 USD
Manufacturer:
JAKOBSEN
Model:
824-4-394

Specifications

Condition:
used
Year:
1978
Stock number:
13006
Size:
08" X 24"

Description

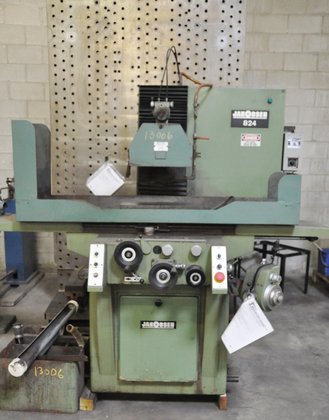

8" X 24" JAKOBSEN 3-AXIS HYDRAULIC SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $4,950.00
Stock # 13006
Serial # 537
New 1978
Type # 824-4-394
Rated Grinding Capacity: 8" x 24"
Wheel Size: 12" Diameter Max.
EQUIPPED WITH:
8" x 18" Electro Magnetic Chuck
Chuck has Standard Magnetic Poles Running Parallel to Length
3-Axis Power Feed with Incremental Power Down Feed
Hydraulic Over the Wheel Wheel Dresser - NO Diamond Holder or Diamond
Vernier Fine Feed Knobs on Y and Z Axis
Separate Coolant Tank and Pump
Variable Power Electro Magnetic Chuck Controller
(2) Adjustable Traverse Stops on Each X and Y Axis
Bellow Style Way Covers
Wheel Guard
NO Wheel Mounting Hub
Wired for 3 Phase, 60 Cycle, 230/460 Volts
Overall Size: 93" L-R x 50" F-B x 74" High (To Floor)
