Location:
York, PA
Price:
$14,500 USD

Specifications

Condition:
used
Year:
1953
Stock number:
14260
Size:
36"

Description

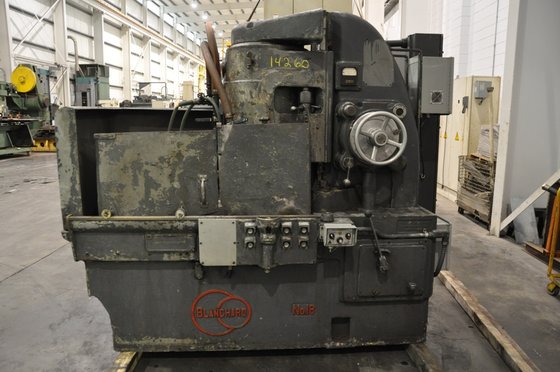

36" BLANCHARD ROTARY SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $14,500.00
Stock # 14260
Serial # 7463
New 1953
Model # 18
36" Electro-Magnetic Chuck with 3/8" Remaining Chuck Life
Maximum Grinding Height Under New Stones: 12"
18" Segmented Style Grinding Wheel (4 Stones)
(6) Table RPM Speeds: 6, 9, 12, 18, 25 & 33 RPM
Incremental Power Down feed of Head: .004 to .080 Thousandths Per Minute
Grinding Wheel Speed: 705 RPM
EQUIPPED WITH:
Grinding Wheel Hub & Segment Clamps
Incremental Down Feed Adjustable Kick Out Stop
3-Point Column Mount & Leveling
Rapid Traverse to Raise & Lower Grinding Head
Under the Wheel Swing Arm Wheel Dresser
Electromatic Chuck Controls
Wet Base with Coolant Pump & Piping
Splash Guards
1/2 HP Coolant Pump, 2 HP Table Rotation Motor
? HP Table Traverse Motor, ? HP Head Elevation Motor
25 HP Main Spindle Motor
Wired 3 Phase, 60 Hz, 220/440 Volts
Presently Wired for 220 Volts
Overall Dimensions: 98" L-R x 75" F-B x 84" High (On 4"...
