Location:
York, PA
Price:
$2,500 USD
Manufacturer:
Moore
Model:
#2

Specifications

Condition:
used
Year:
1954
Stock number:
15052
Size:
#2

Description

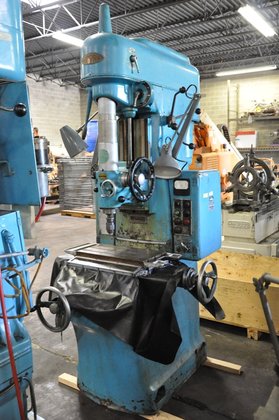

#2 MOORE JIG BORER
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $2,500.00
Stock # 15052-P
Serial # 5347
Model # 2
New Date: 1954
Table Size: 19" x 10"
Table Travel, Left-Right: 17"
Table Travel, In-Out: 12"
Head Travel, Up-Down: 10"
Quill Travel: 4.5"
Quill Feeds: .0015, .003, .006 Thousandths Per Revolution
Spindle Speeds: 200 to 2500 RPM Via 2-Speed Gear Box
Spindle Taper: Moore
Spindle Nose to Table: 10" Minimum to 20" Maximum, Approx.
Vertical Travel of Head Carrier: 10"
EQUIPPED WITH:
(2) Machine Work Lights
Soft Ways in Good Condition
Bijur One Shot Lubrication System
Nylon Ways Cover All Around the Table
(1) Albrecht Keyless Drill Chuck, 1/32" to 1/2" Capacity
No Other Tooling
2 / 1 HP 2-Speed Motor
Wired for 3 Phase, 60 Hz, 440 Volts Only
Overall Size: 43" L-R x 65" F-B x 93" High (On 1-1/2" Blocks) x 3,400 Lbs.
