Location:
York, PA
Price:
$11,500 USD
Manufacturer:
Leblond lathes

Specifications

Condition:
used
Year:
1983
Stock number:
13160
Size:
19" X 102"
Subcategory:
Lathes, engine

Description

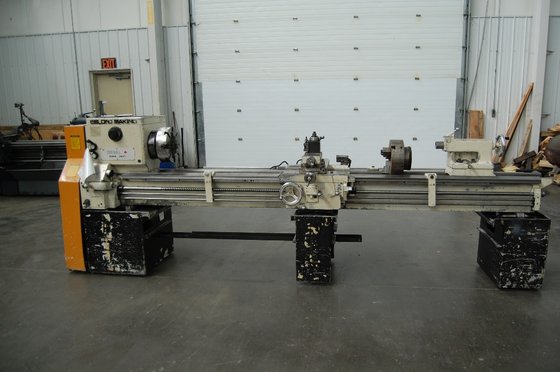

19" X 102" LEBLOND MAKINO ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $11,500.00
Stock # 13160
Serial # 14E-154
New 1983
Model: Regal Servo Shift
Swing Over Ways: 19"
Swing Over Cross Slide: 12-1/8"
(12) Spindle Speeds: 40 to 1600 RPM
Spindle Nose: L-2
Spindle Hole: 3-1/16"
Feeds: .0018 to .104 TPR
Inch Threading: 2 to 112 TPI
Metric Threading: .25 to 14 MM
2-3/8" Diameter Tailstock Quill with #5 MT & 6" Travel
Inch/Metric Cross Slide Dial & Compound Dial
Metric Threading Gears
Thread Chasing Dial
Hard Replaceable Ways
Taper Attachment
Aloris Type Quick Change Toolpost with 1 Holder
12" Bison 4-Jaw Chuck with 1-Piece Reversible Hard Jaws
12" 3-Jaw Chuck with 2-Piece Hard Jaws
Note: Missing the Chip Pans
10 HP Motor, Wired for 3 Phase, 60 Cycle, 230-460 Volts
Presently Wired 440 Volts
Machine Overall Dimensions: 160" L x 43" W x 54" H
Approx. Machine Weight: 5,000 Lbs.
