Location:
York, PA
Price:
$24,500 USD
Manufacturer:
TOS Varnsdorf lathes
Model:
SUS-80

Specifications

Condition:
used
Year:
1980
Stock number:
14229
Size:
33" X 144"
Subcategory:
Lathes, engine

Description

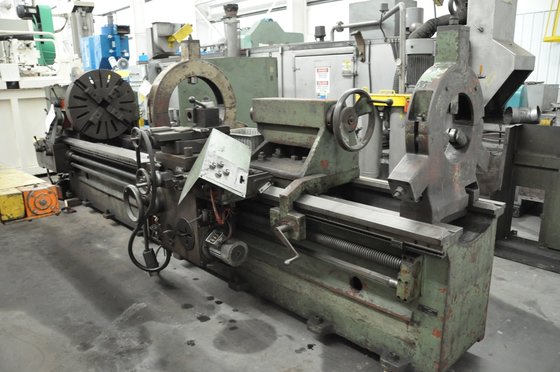

33" X 144" TOS HEAVY DUTY ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $24,500.00
Stock # 14229
Serial # 0427856 New 1980 Model: SUS-80
Maximum Swing Over Bed: 33-3/8"
Maximum Swing Over Cross Slide: 20-7/8"
Bed Width: 28"
Hole Through Spindle: 2-3/4"
Maximum Work Between Centers: 144"
Travel of Cross Slide: 18"
Travel of Compound Slide: 7-1/2"
Size of Centers: #6 Morse
(22) Spindle Speeds: 7.1 to 900 RPM
Longitudinal Feeds: .002 to .94 IPR
Cross Feeds: .001 to .47 IPR
Thread Range: Longitudinal 160 IPM, Cross 80 IPM
EQUIPPED WITH:
Hardened Bed Ways
Metric Dials
Swivel Compound
Inch/Metric Threading
Quick Change Tool Post
4-Way Power Rapid Traverse
Tailstock
31" 4-Jaw Chuck
20" Roller Type Steady Rest
12-1/2" Roller Type Steady Rest
25 HP Main Motor
Wired for 3 Phase, 50 Cycle, 380 Volts
No Transformer with this Machine
Overall Size: 220" L-R x 60" F-B x 72" H x 18,000 Lbs.
Electric Cabinet: 40" L-R x 20" F-B x 70" H
