Location:
York, PA
Price:
$6,500 USD
Manufacturer:
Leblond lathes
Model:
Regal - Custom

Specifications

Condition:
used
Stock number:
15013
Size:
19" X 98"

Description

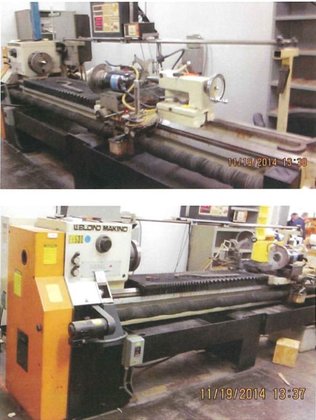

19" X 98" LEBLOND REGAL CUSTOM CNC LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $6,500.00
Stock # 15013-P
Serial # 15E-400
Age: Unknown
Model: Regal
This is a standard Leblond engine lathe that has been modified and converted to an OD grinding operation. The carriage and cross slide have been modified by removing certain parts. The original screws were replaced with servo drive ball screws and an Anilam Crusader II control. The quick change gear box system, X & Y axis screws, top compound assembly, carriage lower apron assembly, threading system and end quadrant change gear system have all been removed from the machine. These parts have been discarded and are not with the machine.
BASIC MACHINE SPECS
Swing Over Bed Ways: 19"
Swing Over Cross Slide Way Cover: 10"
Servo Shift Spindle Speeds: 40 to 1600 RPM
Spindle Nose: L2
Taper in Tailstock Quill: #4 Morse
Spindle Bore: 3"
EQUIPPED WITH:
Setco Precision Grinding Spindle with Wheel Guard
Setco Grinding...
