Location:
York, PA
Price:
$17,500 USD
Manufacturer:
TOYODA
Model:
FA-450II

Specifications

Condition:
used
Year:
1997
Stock number:
11296
Size:
(2) 17.7" pallets

Description

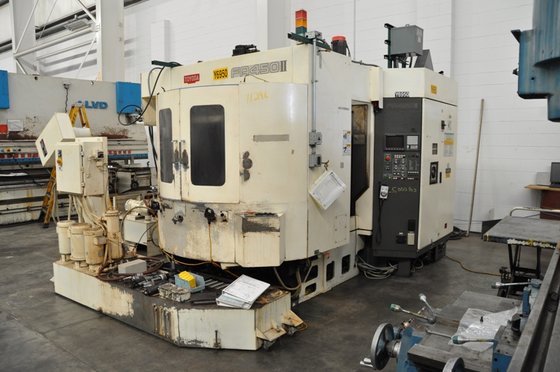

TOYODA CNC HORIZONTAL MACHINING CENTER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $17,500.00
Stock # 11296
Serial # NM8236
New 1997
Model # FA-450II
Pallet Size: 17.72" x 17.72"
X-Axis Table Travel: 23.60"
Y-Axis Head Travel: 23.60"
Z-Axis Saddle Travel: 23.60"
Spindle Taper: Cat 40
Spindle Speeds: 14,000 RPM
Spindle Motor: 10 HP
Automatic Tool Changer: 40 Positions
Approx. Weight: 26,000 Lbs.
Approx. Dimensions: 16.33' L x 9' W
Tallest Auxiliary Piece: 11'
EQUIPPED WITH:
Fanuc 15M Control
Turbo Chip Conveyor
17.72" Square Pallets
1 Degree Table Indexing
40-Position Tool Changer
Rigid Tapping
Through Spindle Coolant
Through Spindle Air Blow
Turn Table Pallet Changer
Door Interlock
Prepped for Touch Center
Tool Breakage Detection
Spindle Chiller
Hydraulic Fixture Assembly
Auxiliary Equipment
New Z & B Axis Servo Motors Installed 2/2012
New Cables from Axis Drives to Axis Drive Motors on All 4 Axes
New Axis Controller Card
Complete Set of Electronic Manuals
New...
