Location:
York, PA
Price:
$6,500 USD
Model:
100

Specifications

Condition:
used
Year:
1995
Stock number:
13092
Size:
12" x 12" Pallets

Description

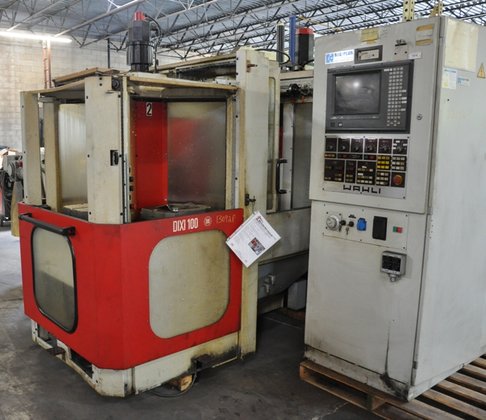

WAHLI FRERES DIXI W100 4 AXIS HORIZONTAL MACHINING CENTER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $6,500.00
Stock # 13092-P
Serial # 15
New 1995
Model # 100
Order # 31009
MACHINE CAPACITY:
X Axis: 19.7", Y Axis: 15.7", Z Axis: 19.7"
Distance Spindle Axis and Pallet: .8" Min. to 16.5" Max.
Distance Spindle Nose and Pallet Axis: 3.9" Min. to 16.5" Max.
PALLET CHANGING SYSTEM:
Pallet Dimensions: 12.6" x 12.6"
Pallet Locations: 4
Programmable Indexing: 360,000 x 0.001 Degrees
Permissible Load Per Pallet: 660 Lbs.
Pallet Changing Time: 7 Seconds
FEED RATE AND THRUST POWER:
X, Y & Z Linear Axes, Rapid Feed Rate: 787 IPM
X, Y & Z Linear Axes, Work Feed Rate: .04 to 472 IPM
Thrust X, Y & Z Axes: 1572 Ft. Lbs.
WORK SPINDLE:
Spindle Motor: 20 HP
Speed Range: 50 to 20,000 RPM (not verified)
Spindle Taper: CAT 40
Machine Spindle Rebuilt January 2012
TOOL CHANGER:
External Floor Mounted
Number of Tools: 48
Max. Tool Weight: 26.4 Lbs.
Max. Tool Diameter: 3.15"...
