Location:
York, PA
Price:
$9,500 USD
Manufacturer:
Bridgeport

Specifications

Condition:
used
Year:
1997
Stock number:
14169
Size:
#1

Description

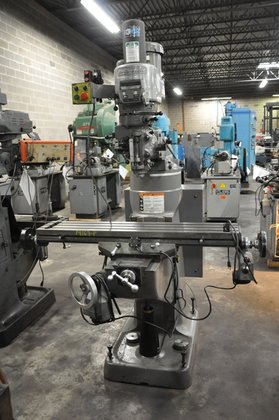

BRIDGEPORT VERTICAL MILL WITH 2-AXIS EZ TRAK DX
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $9,500.00
Stock # 14169-P
Serial # 272144E
New Mid 1997
Model: Series I
Table Size: 9" x 48"
Longitudinal Travel: 30"
Cross Travel: 12"
Vertical Knee Travel: 16"
Head Tilts Front and Back: 45 Degrees
Head Swivels: 360 Degrees
Spindle Speeds (Variable): 60 to 4200 RPM
Spindle Taper: R- 8
Spindle Quill Travel: 5"
Spindle Quill Feeds (3): 0.0015", 0.003", 0.006"
Positioning Speed (X-Y Axis): 100 IPM
Feed Rate (X-Y Axis, Variable): 0.1 to 100 IPM
Minimum Input Increment: 0.0001"
Ram Travel: 12"
Table Load: 300 Lbs. Maximum
Distance Table to Spindle Nose: 6-3/4" to 18-3/4"
Distance Spindle to Column: 6.75" Min. to 18.75" Max.
EQUIPPED WITH:
Controller: 2-Axis EZ Trak DX
Rubber Way Covers on Front and Rear of Table
Servo Model 140 Power Vertical Knee Feed
Variable Speed Head with Acu Rite DRO Scale on Quill
Chrome Saddle Ways (Knee) are in Excellent Condition
Software...
