- York, PA, USA
- $5,500 (USD)
- Stock number:
- Machine Tools equipment in United States

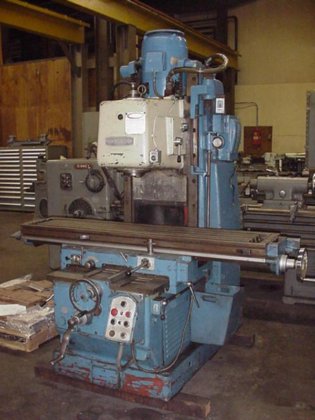

OKK MH-3V BED TYPE VERTICAL MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $5,500.00
Stock # 11320-P
Serial # 1798
Model # MH-3V
Table Size: 14-1/4" x 65" with Table T-Slots
Maximum Longitudinal Travel: 36-1/4"
Maximum Saddle Cross Travel: 11-3/4"
Spindle Taper: #50 National Standard
Spindle Speeds (12): 45 to 1500 RPM
Spindle Nose to Table Surface: 3-1/8" to 18-7/8"
Spindle Center to Column: 13-3/4"
Saddle & Table Feed Rates (12): 1 to 42 IPM
Head Down Feed Rate: Unknown
Maximum Vertical Travel of the Head: 15-3/4"
Automatic Table Rapid and Feed Cycle via Trip Dogs (NO Trip Dogs)
One Shot Lubrication System to Ways
Conventional and Climb Mill of Table
Soft Saddle Ways in Fair + Condition
(1) Head Vertical Crank Handle
(2) Chip Catch Pans
4-Position Turret Style Head Down Feed Stops with Dial Indicator
Power Rapid Traverse to All Axes
7.5 KW (10 HP) Main Spindle Motor
Wired for 3 Phase, 60 HZ, 220/440 Volts
Presently Wired for 220 Volts
