Location:
York, PA
Price:
$79,500 USD
Manufacturer:
Schuler presses
Model:
HPDZb200

Specifications

Condition:
used
Year:
2001
Stock number:
10130
Size:
220 TON
Subcategory:
Presses, hydraulic

Description

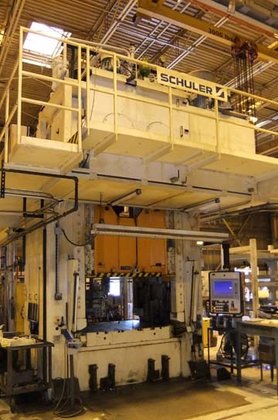

220 TON SCHULER HYDRAULIC PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA ……… $79,500.00
Stock # 10130
Serial # H/7610
New 2001
Model # HPDZb200
SPECIFICATIONS:
Bed Size: 63" x 55" Tee Slotted
Ram Face: 63" x 55" Tee Slotted
Ram Stroke: 35.4"
Maximum Daylight Over 9" Thick Bolster Plate: 36"
24" Wide Windows
Maximum Ram Speed: 15.75 Inches Per Second (945 IPM)
Minimum Ram Speed: 1.85 Inches Per Minute
69.4 Ton Capacity Bed Cushion with 17.7" Stroke, CNC Controlled
3.3 Ton Ejector in Ram with 9.45" Ejector Stroke
Maximum Weight of Upper Die: 6,615 Lbs.
Maximum Offset Ram Load Left & Right: 147,520 Lbs.
Maximum Offset Ram Load Front & Back: 73,760 Lbs.
Allen Bradley Versa View 1500 PLC Control, Pendant Mounted
Snap Thru Dampening
200 HP, 3 Phase, 60 Cycle, 480 Volt Main Hydraulic Pump Motor
EQUIPPED WITH:
Heat Exchanger & Oil Cooler
Schuler Feed Line, Feeding from the Back to the Front
Schuler Servo Roll Feed, New 2001, Type WV-KR-160-1050
Strip Width: 6" Minimum to...
