Location:
York, PA
Price:
$79,500 USD
Manufacturer:
Schuler presses
Model:
HPDZB200

Specifications

Condition:
used
Year:
2002
Stock number:
10143
Size:
220 TON
Subcategory:
Presses, hydraulic

Description

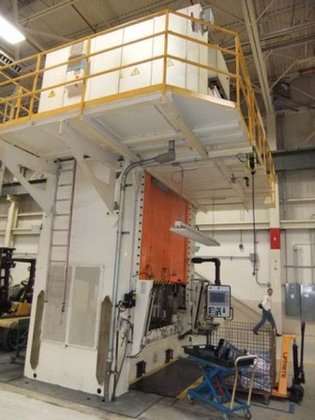

220 TON SCHULER HYDRAULIC PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $79,500.00
Stock # 10143
Serial # H/7641
New 2002
Model # HPDZb200
Bed Size: 94.5" x 55.1" T-Slotted
Ram Face: 94.5" x 56" T-Slotted
Ram Stroke: 23.6"
Open Height: 43" Over 9-1/2" Thick T-Slotted Bolster
Ram Speed Variable: 108 to 945 IPM
Bed Cushion: 69.4 Tons with 12" Stroke
Ejector in Ram: 3.3 Tons with 7.99" Stroke
40" Wide Windows
Max. Weight of Upper Die: 6,725 Lbs.
Max. Offset Ram Load Left-Right: 147,520 Ft. Lbs.
Max. Offset Ram Load Front-Back: 73,750 Ft. Lbs.
Ram has Double Prismatic Guiding
Hydraulic System Operating Pressure: 3,626 PSI
Main Oil Tank Capacity: 633.5 Gallons
Auxiliary Oil Tank Capacity: 43.5 Gallons
Allen Bradley Panel View PLC Control
Operator Pedestal with Dual Palm Buttons
T-Slotted Bolster Plate: 94-1/2" x 55" x 9-1/2"
150 HP Main Hydraulic Pump Motor, 3, Phase, 60 Cycle, 460 Volts
Full Set of Manuals
DIMENSIONS:
Approx. Overall Machine Assembled: 238" L...
