Location:
York, PA
Price:
$19,500 USD
Manufacturer:
HYD-MECH
Model:
H-16

Specifications

Condition:
used
Year:
1993
Stock number:
14198
Size:
16" x 16"

Description

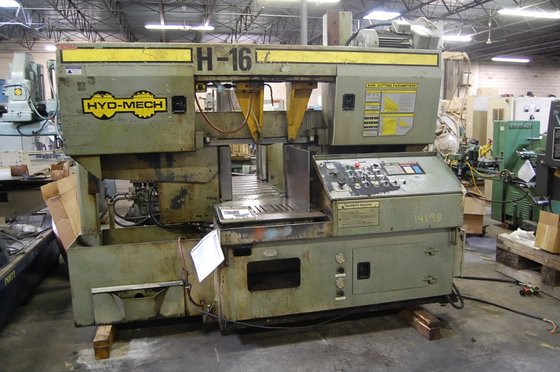

16" X 16" HYD-MECH HORIZONTAL BAND SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $19,500.00
Stock # 14198
Serial # B1093017
New 1993
Model: H-16
Horizontal Cutting Style Frame (Does Not Tilt)
Rated Capacity: 16" Round, 16" x 16" Rectangle
Blade Size: 1-1/2" x .050" x 18' 10" Long
Blade Tensioning: Hydraulic
Blade Wheel Size: 22" Diameter
Blade Speeds, Variable: 60 to 400 FPM
Machine Work Load Capacity: 10,000 Lbs.
Hydraulic Tank Capacity: 17 Gallon
Hydraulic Bar Feed Stroke: 0 to 40" with Multi Indexing
Table Height: 31"
Distance Blade Teeth to Underside of Saw Frame: 18"
Hydraulic Variable Feed Rate: 0 to 7 Inches Per Minute
Exit Table Work Area: 28" Long x 23" Wide
EQUIPPED WITH:
Variable Hydraulic Vise Clamping Pressure, Both Front and Rear Vises
Modes: Manual – Off – On
Bar Feed Out of Stock Sensor System
Hyd-Mech PLC 100 Programmable Control
PLC Power: Off – Reset – On
Index Vise: Open – Closed
Bar Feed Shuttle: Forward – Reverse – Fast – Slow
Coolant:...
