12177 1980 12' X 5/8" AMERICAN HERCULES HYDRAULIC SHEAR BETA in York, PA, USA

Location:
York, PA, USA
Price:
$19,500 (USD)
Manufacturer:
American
Model:
BETA

Specifications

Condition:
used
Year:
1980
Stock number:
12177
Size:
12' X 5/8"
Category:
Machine Tools equipment in United States

Description

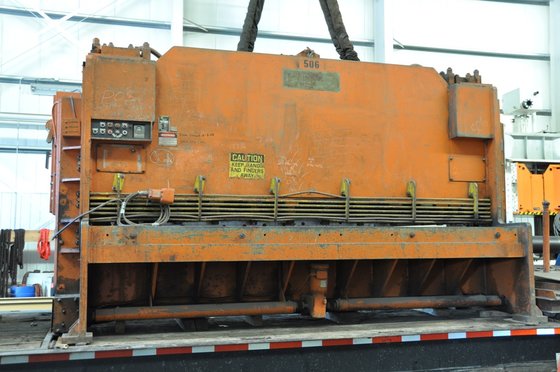

12' X 5/8" AMERICAN HERCULES HYDRAULIC SHEAR
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $19,500.00
Stock # 12177
Serial # 9-625144912
New 1980
Model: Beta
Rated Thickness in Mild Steel: 5/8"
Maximum Working Clearance: 145"
Maximum Rake: 11/16" Per Foot
Nominal Rake: 1/2" Per Foot
Normal Hold Down Force: 76 Tons
Number of Hold Downs: 12
Full Load Speed: Down 136" Per Minute
Up 264" Per Minute
Knife Size: 1-1/8" Thick x 5" Tall
Floor to Table Line: 37"
EQUIPPED WITH:
36" Front Operated Power Back Gage with Fast/Slow Speed for
Forward, Single Speed for Reverse
Rake Position Selector: Capacity at Increased Rake
Nominal Capacity
Half Capacity
Quarter Capacity
Power Blade Clearance Adjustment
Inch or Single Stroke
120" Squaring Arm
36" Sheet Support Arm
Foot Pedal
Full Length Blade Guard
Fixed Roller Balls Built in Table
(2) 10' x 5' Diamond Steel Plates with Roller Ball Plate
Support Arms Welded in Place 35" High (14) Per Plate
Machine Manual
40 HP Main Motor
