1975 Centreless grinding machine LIDKOEPING
Location:
München, Germany
Manufacturer:
LIDKOEPING
Model:
5 B
Weight:
9 t

Specifications

Condition:
used
Year:
1975
Stock number:
1132-403478
Speed:
m/min
State:
Used machine
Weight:
9 t
Division:
Metal Processing
More info:
On request
Quotation:
free on truck
Bar length:
mm
Working area:
Stab 15 - 100 mm
Delivery time:
to be discussed
Country of origin:
SWEDEN
Grinding wheel dia. (unused wheel):
660 mm

Description

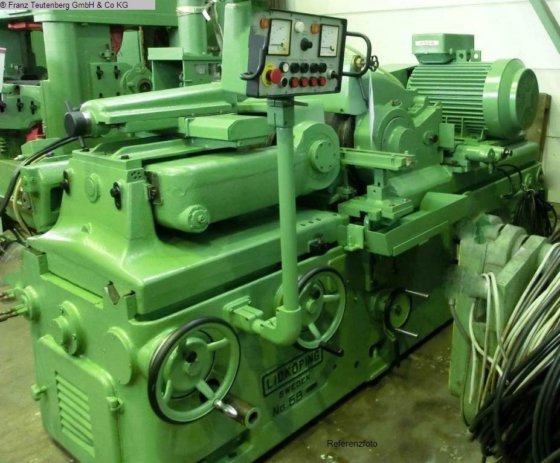

CENTERLESS GRINDING MACHINE for bars and tubes
Constr.: LIDKÖPING
Type: CL 5 B
year: 1975
condition: good
working range: bars: (7) - 100 mm Ø
peripheral speed: 45 m/s
grinding disk: Ø 660 mm, width: 254 mm, bore: 380 mm, supported by bearings
at both sides, drive: 60 kW, 380/400 V, 50 Hz
Regulating disk: Ø 406 mm, width: 254 mm, bore: 280 mm, supported by bearings
at both sides, drive: 10 kW, 380/400 V, 50 Hz
Working height mid of spindles: 1.060 mm
Total weight: approx. 9 to.
