1995 Seneca Falls 25 RO
Location:
Harrison, NJ
Manufacturer:
Seneca Falls
Model:
25 RO
Weight:
1,000 LBS.

Specifications

Condition:
used
Year:
1995
Serial number:
25RO2404
Stock number:
153211
Fixture:
2-1/2"
Approx. dims:
41.25"L-R x 36"F-B x 73.5"H
Fixture with:
1-3/4" SQUARE
Platen table size:
8-7/8" X 30"
Platen table travel:
16"
Grinder spindle tilt:
25 DEGREES ABOVE & BELOW
Approx. machine weight:
1,000 LBS.
Center holding fixture:
5-1/2"
Grinder spindle indexes:
360 DEGREES
Center holding fixture 2:
8"
Grinder column cross travel:
5-1/8"
Grinder spindle vertical travel:
5-1/4"

Description

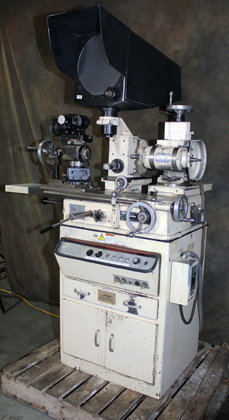

SENECA FALLS (ROYAL OAK) FORM RELIEVING GRINDER
******* OPTICAL COMPARATOR *********
MODEL: 25R0 S/N: 25RO 2404 NEW: 1995
PLATEN TABLE SIZE ................................. 8-7/8" X 30"
PLATEN TABLE TRAVEL ............................... 16"
GRINDER COLUMN CROSS TRAVEL ....................... 5-1/8"
GRINDER SPINDLE VERTICAL TRAVEL ................... 5-1/4"
GRINDER SPINDLE TILT .............................. 25 DEGREES ABOVE & BELOW
GRINDER SPINDLE INDEXES ........................... 360 DEGREES
MAXIMUM DIAMETER BETWEEN CENTERS OF FORM RELIEVING
FIXTURE WITH .................................... 1-3/4" SQUARE
CENTER HOLDING FIXTURE .......................... 5-1/2"
MAXIMUM LENGTH BETWEEN CENTER OF FORM RELIEVING
FIXTURE WITH .................................... 1-3/4" SQUARE
CENTER HOLDING FIXTURE .......................... 8"
MAXIMUM COLLET CAPACITY OF FORM RELIEVING
FIXTURE ......................................... 2-1/2"
APPROX. DIMS. ..................................... 41.25"L-R x 36"F-B x 73.5"H
APPROX. MACHINE WEIGHT ............................ 1,000 LBS.
EQUIPPED WITH:
R-O OPTICAL COMPARATOR ATTACHMENT W/LENS, 10" DIAMETER SCREEN
R-O MOTORIZED RELIEVING FIXTURE (S/N: 25RO-2464)
W/INFINITELY VARIABLE SPEED RHEOSTAT CONTROL (0 TO 80 RPM),
USES 5C COLLETS
CENTER GRINDING FIXTURE, MOUNTS ONTO THE R-O WORKHEAD
R-O GRINDING WHEELHEAD W/1 H.P. /3/60/220-440 VOLT MOTOR
ACCESSORIES INCLUDING "R-O" CAMS & INDEX PLATES
ROLLER BEAING TABLE
MACHINE IS WIRED FOR 3/60/460 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
*** EXCELLENT CONDITION & APPEARANCE ***
