Location:
Marlboro Township, NJ
Manufacturer:
Fcf Bowers Inc
Model:
10-vsm

Specifications

Condition:
used
Stock number:
15366
Subcategory:
Mixers
Subcategory 2:
Dispersion

Description

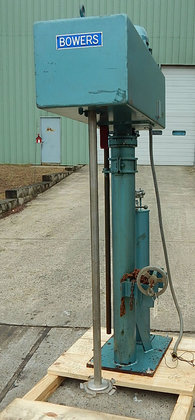

Hi speed dissolver/disperser by fcf bower inc. (straford, ontario canada) model 10-vsm, serial # 3532. 1. 89. Features ten horsepower motor by weg, rated for hazardous locations under class i groups c & d and class ii groups f & g, 208-230/460/3 phase voltage @ 1730 rpm belt driving dispersion mixer with manaually operated variable speed pulley yielding speeds from 600 to 2200 rpm @ mixer, 8. 5" diameter dissolver blade on 60" shaft with 6" floor clearance, post mounted with air over hydraulic lift raising mixer to 53" floor clearance, oil- air reservoir with controls and pressure gauge, total raised height 145", container stabelizer with safety chain, 24" shaft center line to post, oad 24" w x 56" deep x 98" high mounted on 20 x 26 floor with six . 75 fastner holes. Formerly used in colorants manufacturing. See video at Youtube. Com/watch? V=bmdaurkaprw
