Location:
Pollenzo, Italy
Manufacturer:
VIET
Model:
CHALLENGE 333 TM-1350

Specifications

Condition:
used
Stock number:
KMI040

Description

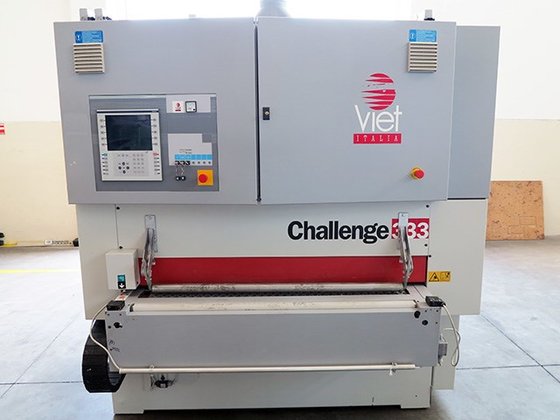

AUTOMATIC CALIBRATING & SANDING MACHINE  FOR TOP SIDE.
GENERAL SPECIFICATIONS
► Industrial machine with heavy-duty structure
► Useful working width 1350 mm
► Min. / max. working thickness 3 / 160 mm
► Width / lenghtways of sanding belts 1380 / 2620 mm
► Automatic belts oscillation
► Oscillating blowers for the cleaning of the sanding belts
SYSTEM AND OPTIONALS OF THE PANEL HANDLING
► Automatic wortable positioner to find the exact thickness of the piece
► Feeding of the carpet with adjusting in continuos speed with regulation in automatic by
command board 3,7 / 16 m/min
► Infeed and outfeed support rollers for long pieces
► Front and rear rubbered pression rollers of the working units
WORKING UNITS
► Unit with ROLLER   to calibrate  - rubber coated roller  90 SHORE - diameter 320 mm -
pneumatic enabling on / disabling off device on the working unit - motor power 18,5 KW
► Unit with ROLLER   to calibrate sand - rubber coated roller  40 SHORE - diameter 320 mm -
pneumatic enabling...
