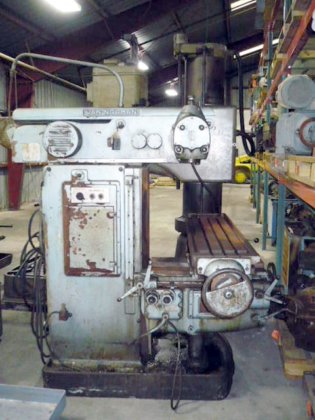

14"X 64" Van Norman With Vertical Or Horizontal Spindle in Navasota, TX

Location:
Navasota, TX
Manufacturer:
Van norman
Model:
3R-10

Specifications

Condition:
used
Stock number:
M2608030
Weight:
9,000 Lbs.
Coolant:
Yes
Table size:
14" X 64"
Floor space:
107" W X 97-3/4" F TO B
Rapids knee:
37-1/2 I.P.M.
Table travel:
32"
Spindle taper:
# 50
Condition info:
Good
Machine height:
86"
Swiveling head:
Yes
Main motor main:
10 Hp 440 Volts
Table cross travel:
14"
Rapids long. & cross:
150 I.P.M.
Knee travel up & down:
24"
Saddle and table feeds:
3/8 To 90 I.P.M.
Spindle speeds horizontal:
50 To 2,000 Rpm's
Spindle to table min / max:
0 To 14-1/4"
Category:
Mills

Description

Table Size 14" X 64"
Table Travel 32"
Table Cross Travel 14"
Knee Travel Up & Down 24"
Spindle Taper # 50
Spindle Speeds Horizontal 50 To 2,000 Rpm's
Spindle To Table Min / Max 0 To 14-1/4"
Saddle And Table Feeds 3/8 To 90 I.P.M.
Rapids Long. & Cross 150 I.P.M.
Rapids Knee 37-1/2 I.P.M.
Main Motor Main 10 Hp 440 Volts
Floor Space 107" W X 97-3/4" F TO B
Machine Height 86"
Weight 9,000 Lbs.
Swiveling Head Yes
Coolant Yes
Condition Good
