2001 HOLZMA HPP 82-3800 FRONT

2001 HOLZMA HPP 82-3800 FRONT LOAD, AUTO. PANEL SAW [PK-011000] in Canada

Location:
Canada
Price:
$22,750 USD
Manufacturer:
Holzma
Model:
HPP 82-3800

Specifications

Condition:
used
Year:
2001
Recnum:
PK-011000
Comments:
The HPP-82 is a very popular model;...with Cutright Optimization!
Machtype:
FRONT LOAD, AUTO. PANEL SAW
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Elect./voltage:
220 V, 60 Cy, 3 Ph.
Appr. repl. cost:
105000

Description

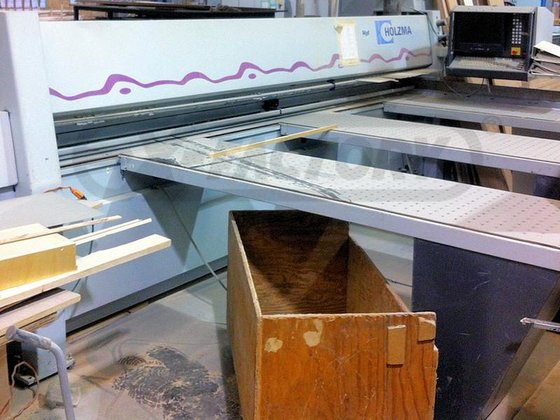

HOLZMA HPP 82-3800 CNC Front Load Panel SawSpecifications & Features:

-- 149" (3,800 mm) Cutting length; 3.3" (85 mm) cutting height, 18 HP (13.4 kW) main and 3 HP (2.2 kW) scoring motor; variable saw carriage travel speed 0 - 229 FPM (0 - 70 MPM), constant return of 229 FPM (70 MPM).

-- The HPP 82-3800 has a electronically controlled overhead program fence, rack & pinion driven on both sides, forward speed 131 FPM (40 MPM), return speed 131 FPM (40 MPM), via AC servo motor.

-- HOLZMA "CADmatic control; 15" Control with virtually unlimited cutting dimensions memory.

-- Cutright software version 7.5; color screen w/moving graphics and numeric display, CAD-input, floppy disk drive and on-line operation via RS-232 port linked to office PC is possible.

-- Equipped with:

-- Combi-rollers rear machine table with profile rails, front with (3) air floatation tables 24" x 86" each (2,160 x 650 mm); programmable miter device.

-- Complete with:

-- (7) Clamps which open up to 4" (102 mm); crosscut fence, automatic side pressure device for crosscutting on pressure beam; patented "Quick Saw Changing System" for main & scoring blade.
