1984 24" Width 48" Length
Location:
Harrison, NJ
Model:
RT-1200
Weight:
13,000 LBS.

Specifications

Condition:
used
Year:
1984
Serial number:
463-230V-847
Stock number:
153136
Cross feed travel:
32"
Grinding wheel size:
18" X 4" X 8"
Width& length ground:
24" X 48"
Hydraulic table speed:
3' TO 90' FPM
Approx. machine weight:
13,000 LBS.
Vertical handwheel grad:
0.0002"
Auto cross feed increment:
0.02" TO 1.2"
Longitudinal table travel:
51"
Cross feed hand wheel grad:
0.0008"
Vertical capacity w/new wheel:
18"
One rev. of handwheel for downfeed:
0.040"
Wheelhead crossfeed rapid traverse:
20' FPM

Description

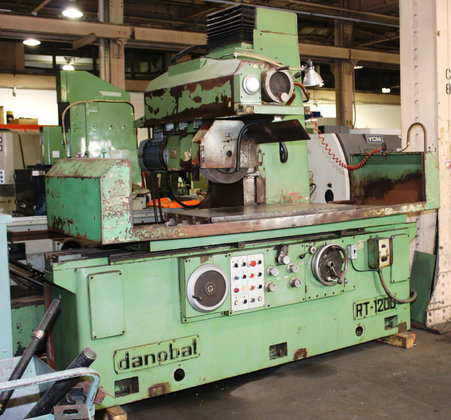

24" X 48" DANOBAT HYDRAULIC SURFACE GRINDER
MODEL: #RT-1200 S/N: 463-230V-847 NEW: 1985
WIDTH& LENGTH GROUND ................. 24" X 48"
VERTICAL CAPACITY W/NEW WHEEL .......... 18"
GRINDING WHEEL SIZE .................... 18" X 4" X 8"
LONGITUDINAL TABLE TRAVEL .............. 51"
HYDRAULIC TABLE SPEED .................. 3' TO 90' FPM
CROSS FEED TRAVEL ...................... 32"
AUTO CROSS FEED INCREMENT .............. 0.02" TO 1.2"
CROSS FEED HAND WHEEL GRAD. ............ 0.0008"
WHEELHEAD CROSSFEED RAPID TRAVERSE ..... 20' FPM
ONE REV. OF HANDWHEEL FOR DOWNFEED ..... 0.040"
VERTICAL HANDWHEEL GRAD. ............... 0.0002"
APPROX. MACHINE WEIGHT ................. 13,000 LBS.
FLOOR SPACE REQUIRMENT FOR OPERATION ... 14'L X 7'6'W
X 9'H
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
18" DIAMETER X 4" WIDE GRINDING WHEEL
24" X 48" O.S. WALKER ELECTRO-MAGNETIC
W/VARIABLE HOLD NEUTROFIER CONTROL
COOLANT SYSTEM
WHEEL DRESSER
EXTERNAL HYDRAULIC TANK & PUMP
15 H.P./3/60/220-440 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** JUST REMOVED FROM SERVICE, DIRTY BUT IN GOOD RUNNING ORDER **
VIDEO UNDER POWER
