1983 32" Swing 16" Stroke
Location:
Harrison, NJ
Model:
UNIVERSAL
Weight:
8,000 LBS

Specifications

Condition:
used
Year:
1983
Serial number:
Y-16779
Stock number:
153913
Wheelhead:
5 HP
Table speeds:
UP TO 25' FPM
(on diameter):
0.00025" TO .001"
Hydraulic pump:
3 HP
Swing to crosslide:
............................ 24"
Maximum table travel:
20"
Approximate net weight:
8,000 LBS
Maximum grinding stroke:
16"
Minimum grinding stroke:
1/2"
Workhead spindle flange:
D1-6"
Workhead cross slide travel:
15-1/2"
Wheelslide cross feed travel:
1-1/2"
Max. swing inside chuck guard:
20"
Angular adjustment of workhead:
90 DEGREES
Approximate machine dimensions:
...... 106" L x 62" W x 72" H
On turn of workslide handwheel:
0.125"
Infinitely variable spindle speeds:
50 TO 425 RPM

Description

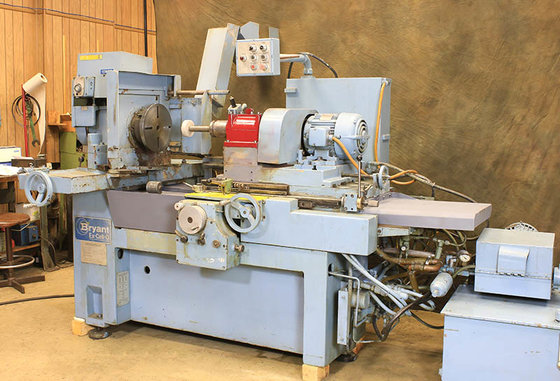

BRYANT "UNIVERSAL" INTERNAL GRINDER
w/FACTORY RISERS FOR INCREASED SWING
MODEL: UNIVERSAL S/N: Y-16779 NEW: 1983
MAX. SWING INSIDE CHUCK GUARD ..................... 20"
MAX. SWING OVER TABLE WITHOUT CHUCK GUARD ..... 32"
SWING TO CROSSLIDE:............................ 24"
ANGULAR ADJUSTMENT OF WORKHEAD ................ 90 DEGREES
WHEELSLIDE CROSS FEED TRAVEL .................. 1-1/2"
WORKHEAD CROSS SLIDE TRAVEL ................... 15-1/2"
MAXIMUM TABLE TRAVEL .......................... 20"
MAXIMUM GRINDING STROKE ....................... 16"
MINIMUM GRINDING STROKE ....................... 1/2"
WORKHEAD SPINDLE FLANGE ....................... D1-6"
SPEEDS AND FEEDS:
TABLE SPEEDS ................................. UP TO 25' FPM
INFINITELY VARIABLE SPINDLE SPEEDS ........... 50 TO 425 RPM
POWER CROSS FEED INCREMENTS
(ON DIAMETER) ................................ 0.00025" TO .001"
ONE TURN OF CROSS FEED HANDWHEEL (ON DIA.) ... 0.050"
ON TURN OF WORKSLIDE HANDWHEEL ............... 0.125"
MOTORS:
WHEELHEAD .................................... 5 HP
HYDRAULIC PUMP ............................... 3 HP
APPROXIMATE MACHINE DIMENSIONS:...... 106" L x 62" W x 72" H
APPROXIMATE NET WEIGHT ...................... 8,000 LBS
EQUIPPED WITH:
4" FACTORY RISERS FOR INCREASED SWING .... 32" SWING
(1) BRYANT I.D. GRINDING SPINDLE
DRESSER
FACING ATTACHMENT
TURRET STOP FOR WORKHEAD POSITIONING
WHEELHEAD BASE ADJUSTING SCREW
EXTERNAL HYDRAULIC SYSTEM - 40" LONG X 24" WIDE X 33" HIGH
3/60/230-460 VOLT ELECTRICS
**STRAIGHT AND TAPERED BORES, EXTERNAL DIAMETERS,
INTERNAL AND EXTERNAL FACES AND ROTARY FACE GRINDING
CAN ALL BE READILY ACCOMPLISHED WITH THE BRYANT
UNIVERSAL.**
* EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT *
* INSPECT UNDER POWER IN OUR HARRISON, N.J WAREHOUSE *
