Top Seller
1984 8 Star BG-2 TOOL
Location:
Harrison, NJ
Manufacturer:
Star
Model:
BG-2
Weight:
880 LBS.

Specifications

Condition:
used
Year:
1984
Serial number:
840235
Stock number:
153885
Wheel size:
7"DIA. X 1- 1/4"BORE X 1"WIDTH
Floor space:
30" X 30" X 47"H
Front& back:
45 DEG.
Coolant motor:
0.6 KW
Infeed stroke:
5/8"
Spindle motor:
0.4 KW
Approx. weight:
880 LBS.
Vertical plane:
32 DEG. (RIGHT& LEFT)
Horizontal plane:
90 DEG. (RIGHT& LEFT)
Shank size of tools:
7/8" SQUARE

Description

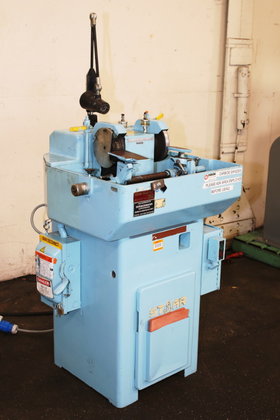

STAR (MADE IN JAPAN) PRECISION CARBIDE TOOL GRINDING & LAPPING MACHINE
MODEL: BG-2 S/N: 840235 NEW: 1984
WHEEL SIZE .......... 7"DIA. X 1- 1/4"BORE X 1"WIDTH
SWIVELLING ANGLE OF TOOLHOLDERS:
HORIZONTAL PLANE .......... 90 DEG. (RIGHT& LEFT)
VERTICAL PLANE ............ 32 DEG. (RIGHT& LEFT)
FRONT& BACK .............. 45 DEG.
SHANK SIZE OF TOOLS ........ 7/8" SQUARE
INFEED STROKE .............. 5/8"
SPINDLE MOTOR .............. 0.4 KW
COOLANT MOTOR .............. 0.6 KW
FLOOR SPACE ................ 30" X 30" X 47"H
APPROX. WEIGHT ............. 880 LBS.
EQUIPPED WITH:
DIAMOND WHEELS
WORK LIGHT
COOLANT
"The BG-2 offers an ideal solution for the requirements of producing
a large variety of carbide single point turning tools, as well
as their maintenance by resharpening.
Diamond-double-side rough and finish grinding and lapping wheels
eliminate re-clamping of tools.
Micrometer infeed, combined with a sensitive reciprocating motion
of the tool procedure perfect cutting faces and edges, while
providing for long life of grinding and lapping wheels.
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
