Top Seller
1976 14" Swing 40" Centers
Location:
Harrison, NJ
Model:
M-1018-UA
Weight:
8,000 LBS.

Specifications

Condition:
used
Year:
1976
Serial number:
3507
Stock number:
153029
Angle):
9 DEGREES
On dia:
0.0005" TO .002"
Grinding:
14" DIA. X 2"W X 5" HOLE
Swivel range:
+/- 90 DEGREES
Approx. weight:
8,000 LBS.
Traverse speed:
4" TO 192" I.P.M.
Workhead taper:
#4 MT
Tailstock taper:
#4 MT
Tailstock stroke:
1- 1/4"
Approx. dimensions:
120" X 60" X 69"H
Workhead swivel range:
+/- 90 DEGREES
Rapid hydraulic infeed:
........................................... 2"
Distance between centers:
40"
Maximum swing over table:
14"
Infinitely variable workhead:
30 TO 600 RPM
Dia. of hole, workhead spindle:
1- 3/16""
Plunge grinding, feed rate range:
0.0005" TO .070"
(2) grinding wheel spindle speeds:
1640/1900 R.P.M.

Description

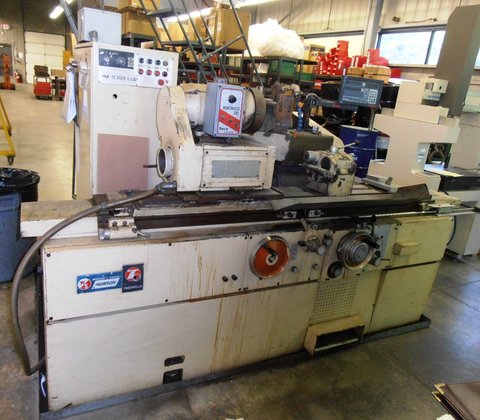

14" X 40" TACCELLA (MADE IN ITALY) UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER
** HEAVY PATTERN, BEAUTIFUL EUROPEAN MACHINE **
MODEL: 1018UA S/N: 3507 NEW: 1976
MAXIMUM SWING OVER TABLE.......................................... 14"
DISTANCE BETWEEN CENTERS.......................................... 40"
WORK CARRIAGE:
TRAVERSE SPEED.................................................... 4" TO 192" I.P.M.
GRINDING ......................................................... 14" DIA. X 2"W X 5" HOLE
SWIVEL RANGE ..................................................... +/- 90 DEGREES
(2) GRINDING WHEEL SPINDLE SPEEDS................................. 1640/1900 R.P.M.
AUTOMATIC INFEED @ TABLE REVERSAL,
ON DIA. ........................................................ 0.0005" TO .002"
PLUNGE GRINDING, FEED RATE RANGE ................................. 0.0005" TO .070"
RAPID HYDRAULIC INFEED:........................................... 2"
MOTORIZED WORKHEAD AND TAILSTOCK:
INFINITELY VARIABLE WORKHEAD....................................... 30 TO 600 RPM
WORKHEAD TAPER..................................................... #4 MT
DIA. OF HOLE, WORKHEAD SPINDLE..................................... 1- 3/16""
WORKHEAD SWIVEL RANGE.............................................. +/- 90 DEGREES
TAILSTOCK TAPER.................................................... #4 MT
TAILSTOCK STROKE .................................................. 1- 1/4"
TABLE:
SWIVEL TABLE GRADUATED (DEG. INCLUDED
ANGLE).............................................................. 9 DEGREES
APPROX. DIMENSIONS ................................................. 120" X 60" X 69"H
APPROX. WEIGHT ..................................................... 8,000 LBS.
EQUIPPED WITH:
HYDRAULIC OPERATION FEATURING:
-SINGLE LEVER AUTO CYCLE CONTROL
-AUTO TABLE TRAVERSE
-AUTO INFEED
-DUAL RATE (COARSE & FINE) PLUNGE INFEED
-RAPID WHEELHEAD AVANCE & RETRACTION
SPARKOUT TIMER (0 TO 60 SECONDS)
DUAL LIVE/DEAD HEADSTOCK SPINDLE
14" GRINDING WHEEL
ELECTRONIC SPEED CONTROL FOR WORKHEAD
AUTO LUBRICATION SYSTEM
COOLANT SYSTEM
WIRED PRESENTLY FOR 3/60/230-460 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
