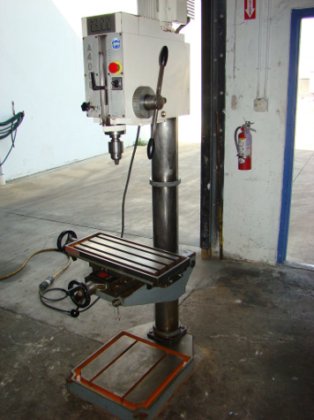

26", WILTON/ARBOGA, #A4008M, geared, #4MT,
Location:
Hialeah, FL
Manufacturer:
Wilton

Specifications

Condition:
used
Stock number:
6631
Division:
Metalworking
Subcategory:
Drilling & tapping

Description

SPECIFICATIONS:
Drilling capacity--mild steel 1-7/8"
--cast iron 2-1/8"
Tapping capacity--mild steel 1"
--cast iron 1-1/4"
Distance from spindle center to column 13"
Spindle speeds--number 8
--range 108-1800 rpm
Spindle taper #4MT
Spindle diameter 2-3/4"
Feed rates--number 4
--range .004 to .013 ipr
Maximum quill movement 8"
Column diameter 5-1/2"
Table size 23" x 9-1/2"
Spindle motor (two speed) 3.0 HP
Electrics 440/3/60
Net weight 700 lbs
EQUIPPED WITH:
X-Y travelling table, Automatic spindle feed
Jacobs 0.18 to 0.80 capacity drill chuck
