2012 BIESSE SKIPPER 100 CNC
Location:
United States
Price:
$125,000 USD

Specifications

Condition:
used
Year:
2012
Recnum:
BP-012205
Comments:

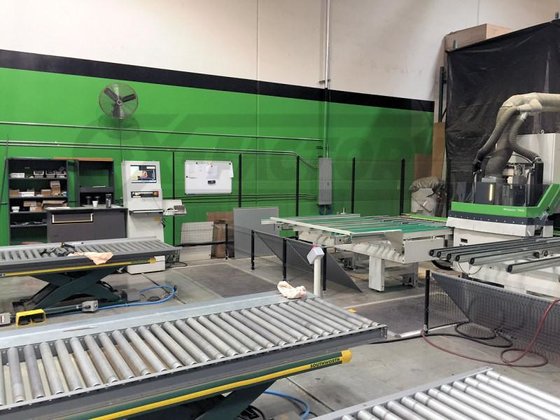

An exceptionally well-maintained BIESSE "Skipper"...under power & available for inspection!
Machtype:
CNC MACHINING CENTER (2-HEAD)
Condition info:
(7-9) Excellent condition [8]
Current status:
Active
Elect./voltage:
480 V, 60 Cy, 3 Ph.
Appr. repl. cost:
225000

Description

BIESSE SKIPPER 100 CNC MACHINING CENTER (2-HEAD):

-- Specifications:Flexible "Top & Bottom" Machining Center that uses an innovative panel handling system.

-- Workable part size:"X" axis is 118" (3,000 mm), "Y" axis is 39.4" (1,000 mm), max. part thickness of 2.4" (60 mm).Min. workable part size in "X" axis is 3.5" (90 mm), "Y" axis is 2.7" (70 mm), "Z" axis is .3" (8 mm).

-- Worktable:Manual LH infeed air table; Automatic RH outfeed transfer conveyor with belts & rollers, outfeed table is "robot ready".

-- Positioning Speed:"X" Axis is 394 FPM (120 MPM), "Y" axis 295 FPM (MPM), "Z" axis is 98 FPM (30 MPM).

-- Boring units:(1) Top mounted boring block, 4.2 HP (3 kW), 4,000 RPM; (29) vertical spindles, (17) spindles in "X" axis & (12) spindles in "Y" axis;(10) Horizontal spindles, (4+4) spindles in "X" axis & (1+1) horizontal spindles in "Y" axis;(1) "X" axis grooving saw with 2.2 HP (1.7 kW) motor - 5,000 RPM, 150 mm dia blade.(1) Bottom mounted boring block, 4.2 HP (3 kW), 4,000 RPM, (29) vertical spindles, (17) spindles in "X" axis & (12) spindles in "Y" axis;(10) horizontal spindles, (4+4) spindles in "X" axis & (1+1) horizontal spindles in "Y" axis;(1) "X" axis grooving saw with 2.2 HP (1.7 kW) motor -5,000 RPM, 150 mm dia blade.

-- Machining:(1) Top mounted 4.8 HP (3.5 kW) electro spindle, 7,000 - 18,000 RPM with RH/LH rotation; HSK D-50 adaptors for manual push button "quick-tool" change, ERC-32 tool holders & RC-32 collets.(1) Bottom mounted 4.8 HP (3.5 kW) electro spindle, 7,000 - 18,000 RPM with RH/LH rotation; HSK D-50 adaptors for manual push button "quick-tool" change, ERC-32 tool holders & RC-32 collets.

-- Operator & Machine Control: PC Front-End with BIESSE "NC 1000" + Windows "XP" Operating System; 15" color monitor; international keyboard with soft-touch keypad & industrial mouse.RS-232 serial ports for possible down-loading from an office PC, USB ports; (1) 48x CD ROM drive; all mounted in a separate control console with a built-in 1,500 W air conditioner for constant temperature & dust-free environment.

-- Complete with:Universal transformer for voltages from 200 - 600 volts, 50/60 Hz, 3-Phase; automatic lubrication system for guides & ways; sound enclosure and complete set of safety fences/devices; machine docs & manuals.

-- Options include:"BiesseWORKS Advanced" Office version with: (2) Hardware keys; pneumatic part clamping with motorized infeed & outfeed transfer conveyors; bar code scanner & label printing software.Software Disclaimer: EX-FACTORY INC. Offers NO warranty or support, written or implied concerning any/all "optional" or "additional" manufacturer or 3rd party software supplied with this machine. All software related issues including relicensing fees/requirements/functionality & training is ultimately the sole responsibility of the "Buyer".
