1999 GABBIANI GALAXY 140 REAR

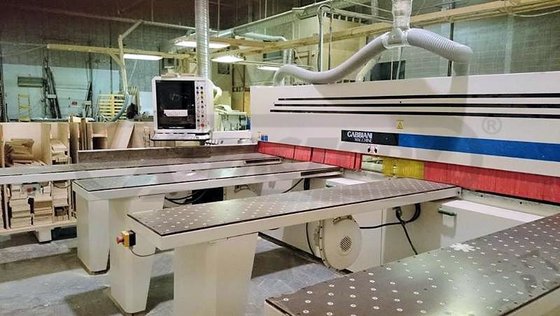

1999 GABBIANI GALAXY 140 REAR LOAD, AUTOMATIC PANEL SAW [PK-280207] in United States

Location:
United States
Price:
$22,500 USD
Manufacturer:
Gabbiani
Model:
GALAXY 140

Specifications

Condition:
used
Year:
1999
Recnum:
PK-280207
Comments:
Big Heavy Duty Saw needs a little TLC but can be a workhorse.
Machtype:
REAR LOAD, AUTOMATIC PANEL SAW
Condition info:
(1-3) Requires repair [3]
Current status:
Active
Elect./voltage:
460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
225000

Description

GABBIANI GALAXY 140 Rear Load Automatic Panel Saw Specifications & Features: 177" (4,500 mm) Overall cutting length, 5.5" (140 mm) max. saw blade projection; 25 HP main motor w/pneumatic saw blade "quick change" system, 3 HP separate scoring motor, 13.7" dia. - 4,500 RPM main & 7.8" dia. - 7,200 RPM scoring blade externally adjustable.Equipped with: Saw carriage travel speed 0 - 492 FPM hydraulically driven, 492 FPM constant return, powered by SIEMENS AC brushless motor; back fence with (7) material clamps, fence/pusher speed 0 - 295 FPM, return 295 FPM, powered by SIEMENS AC brushless motor on rack & pinion system; alternate pressure beam for final trim cut, pneumatic side alignment with dual rollers.Complete with: PC front end controller with 15" color monitor, data input keyboard & ASCII keyboard for data entry, 3-1/2" floppy disk drive & CD-ROM for data transfer, (2) RS-232 port capability for downloading from the office is possible.Includes: (1) Air float table 96" x 19-5/8" and (3) air float tables 60" x 19-5/8". 4-Post electronically controlled screw type lift table, maximum bunk height 24" (600 mm) without pit or risers, max. board size 12' x 6', powered roller side conveyor bed, can be loaded from either side.Actual model is Galaxy 140T.
