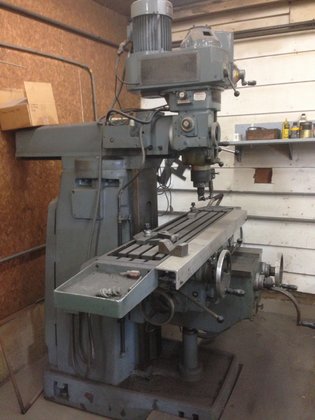

1985 Supermax SUPERMAX SERIES 2
Location:
Holland, OH
Model:
SUPERMAX SERIES 2
Spindle Taper:
30 MM QUICK CHANGE

Specifications

Condition:
used
Year:
1985
Stock number:
64117
Serial:
30577
Coolant:
YES
Quill stroke:
5-1/2"
Spindle feeds:
0015, .003 & .005 IPR
Spindle motor:
5HP
Spindle taper:
30 MM QUICK CHANGE
Cross table travel:
12"
Table work surface:
51" X 11"
Vertical rapid feed:
31-1/2 IPM
Vertical table travel:
18"
Spindle speeds, variable:
75-4220 RPM
Longitudinal table travel:
39-3/8"
Longitudinal & cross feeds:
(12) 1/2 - 23-3/4 IPM
Spindle nose to table, maximum:
22-3/4"
Head incline angle, left & right:
45 DEGREES
Longitudinal & cross rapid feeds:
118 IPM
Subcategory:
Mill

Description

SERIAL .................................. 30577
MODEL ................................... SUPERMAX SERIES 2
YEAR .................................... 1985
TABLE WORK SURFACE ...................... 51" X 11"
LONGITUDINAL TABLE TRAVEL ............... 39-3/8"
CROSS TABLE TRAVEL ...................... 12"
VERTICAL TABLE TRAVEL ................... 18"
LONGITUDINAL & CROSS FEEDS .............. (12) 1/2 - 23-3/4 IPM
LONGITUDINAL & CROSS RAPID FEEDS ........ 118 IPM
VERTICAL RAPID FEED ..................... 31-1/2 IPM
SPINDLE SPEEDS, VARIABLE ................ 75-4220 RPM
SPINDLE TAPER ........................... 30 MM QUICK CHANGE
QUILL STROKE ............................ 5-1/2"
SPINDLE FEEDS ........................... .0015, .003 & .005 IPR
HEAD INCLINE ANGLE, LEFT & RIGHT ........ 45 DEGREES
SPINDLE NOSE TO TABLE, MAXIMUM .......... 22-3/4"
COOLANT ................................. YES
SPINDLE MOTOR ........................... 5HP
2-AXIS NEWALL DIGITAL READOUT
(5) 30 MM QUICK CHANGE TAPER CUTTER HOLDERS
