2016 PROMAX STAR S120-TWN مصنع
Location:
Ankara, Turkey
Price:
$162,670 USD
Manufacturer:
PROMAX STAR
Model:
S120-TWN مصنع خلط ثابتة

Specifications

Condition:
used
Year:
2016
Colour:
blue
Capacity:
120 m3/h
In stock:
5
Engine; brand:
C 45
Original painting:
yes
Vehicle condition:
new
First registration:
2016
Originally varnished:
yes
Subcategory:
Concrete plant

Description

PROMAXSTAR CONCRETE BATCHING PLANT LTD. CO.
quality solutions at affordable prices’
In more than 15 conturies More than 250 plant.
THİS YEAR A SPECIAL PRICE : 63.000.00 EURO (DELIVERY EX WORKS )
TRANSPORT ONLY WİTH 1 CONTEYNER
ALWAYS IN STOCK
EASY TO INSTALL
INCLUDING INSTALLATION

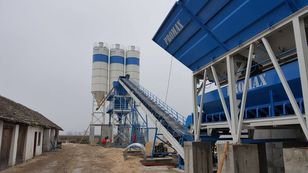

COMPACT CONCRETE BATCHING PLANT
Manufacturer : PROMAXSTAR/TURKEY
Model : C45
Capacity : 45 m3 / hour WET SYSTEM
Mixer :750 lt Pan Mixer
TECHNICAL PROPERTIES
Capacity : 45 m3 / hour compacted fresh concrete
Mixer Capacity :750 Lt . ( compacted fresh concrete )
Total Motor Power Rating : 68 kW
Voltage : 380 V - 50 Hz
aggregate Hopper
Capacity : 40 m3 (3 section)
Aggregate hopper : 3
Discharing gate : 4
Vibrator :1 x wam-ozb 200/3
Pneumatic piston :4x 80x200 FMS+air valf semak(italian)
Aggregate weihing belt
¡
Capasity : 2000 kg
Load cell : 4x1000 kg zemic
Engine : 7.5 kw gamak-volt
Gearbox : Dissan dg 2-180
Agrega transfer conveyor
Belt Dimensions : 650 mm x 14,000 mm
Belt Brand : DERBY-BANDSAN
Engine– Gearbox : 15 kw engine- dissan dg 2-200 gearbox
Cement Weihing Hopper
Weighing Capacity : 500 kg
Loadcell : 3 x 1000 kg ZEMIC
Discharge valve : 250 mm(wam- ozb)
Vibrator : 80/3 Wam-Ozb brand
Water Weighing Bunker
Weighing Capacity : 300 lt
Loadcell : 3x1000 kg ZEMIC
Discharge valve : 150 mm (wam-ozb)
Filling : 2 inc steel pipe and 2 inc penuematic valve TORK .
Water pump : 30 ton/h DOMAK .
Additive Bunker :
Capasity : 40 kg
Loadcell : 1x S type 100 kg ZEMIC
Discharge valve : 1 inc TORK
Compressor and air system
Compressor : AKKOMP (air manufacturer made in ITALY )
Tank capasity : 550 LT
Working Pressure : 8 ,5 bar
Motor Power Rating : 5.5 kw
Complete installation of steel and 4 storage tanks available.
Mixer
Manufacturer : PROMAXSTAR /TURKIYE
Type : 1250/750 lt PANMİXER
Loading Capasity : 1250 lt.
Compacted Concrete Capasity : 750 lt.
Engine : 37 KW gamak
Gearbox :Cobra (italian)
Mixing arm : 6 pcs
Mixer base Plates : NISOCO 450 (it can manufacture 50.000m3-450.000m3)
Mixer Internal Linings (Wear Plates) : Ni- hard special hard cast material
Discharging in Emergency Situations : manual Emergency Situation hand pump
Emergency Stop Button available.
Digital Mixer Control System (alarm)
Control System
Semi automatic touch screen
English- Russian- French- Arabic languages are available.
siemens- back off - Telemecanique – HES
Fore more information,pleas conctac us.
