1980 8" Width 18" Length
Location:
Harrison, NJ
Model:
MSG-250H-2AH
Weight:
3,490 LBS

Specifications

Condition:
used
Year:
1980
Serial number:
80021562
Stock number:
153292
Vertical:
16"
Longitudinal:
20"
Cross (manual):
10"
Cross (automatic):
9-1/2"
Rapid cross feed rate:
2 - 17 IPM
Approx. machine weight:
3,490 LBS
Maximum surface ground:
9-1/2" X 20"
Working surface of table:
8" X 19"
Surface and spindle center:
22-1/2"
Cross feed handwheel graduation:
0.001"
Elevating handwheel graduations:
0.0001"
Inf. variable longitudinal feeds:
5 - 68 FPM

Description

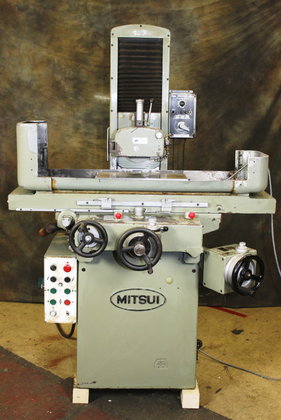

8" X 18" MITSUI (JAPANESE) "SUPER-PRECISION"
HYDRAULIC SURFACE GRINDER w/AUTO INCREMENTAL DOWNFEED
MODEL: MSG250H-2AH S/N: 80021662 NEW: 1980
WORKING SURFACE OF TABLE ..................... 8" X 19"
MAXIMUM SURFACE GROUND ................... 9-1/2" X 20"
MAXIMUM DISTANCE BETWEEN TABLE
SURFACE AND SPINDLE CENTER ...................... 22-1/2"
RANGE:
LONGITUDINAL .................................... 20"
CROSS (AUTOMATIC)................................ 9-1/2"
CROSS (MANUAL)................................... 10"
VERTICAL ........................................ 16"
SIZE OF STD. GRINDING WHEEL .... 7" X 1/2" X 1-1/4"HOLE
SIZE OF MAX. GRINDING WHEEL ... 8" X 3/4" FACE X 1-1/4" HOLE
INF. VARIABLE LONGITUDINAL FEEDS .......... 5 - 68 FPM
AUTO CROSS FEED TO TABLE PER STROKE . 0.02" - 0.05" IPM
AUTO VERT. FEED INCREMENTS, TEN STEPS .. .0001" - .001"
RAPID CROSS FEED RATE ...................... 2 - 17 IPM
ELEVATING HANDWHEEL GRADUATIONS ............... 0.0001"
CROSS FEED HANDWHEEL GRADUATION ................ 0.001"
APPROX. MACHINE WEIGHT ..................... 3,490 LBS
EQUIPPED WITH:
-AUTOMATIC INCREMENTAL DOWNFEED OF GRINDING WHEEL
(SURFACE& PLUNGE MODES)
-HYDRAULIC LONGITUDINAL & POWER CROSS FEEDS
-ALL 3 AXES ARE ROLLER BEARING SLIDES
-HARDENED & GROUND WAYS (REMOVEABLE) ON TABLE,
CARRIAGE/SADDLE& COLUMN
-TABLE MOVES ON LINEAR BALL BEARINGS
-AUTOMATIC ONE SHOT LUBRICATION SYSTEM
-1.3 HP SUPER-PRECISION SPINDLE DRIVE
-FINE FEED OPTION FOR THE CROSS FEED, .000050" (50 MILLIONTHS OF AN INCH) GRADUATION
-8" X 18" O.S. WALKER FINE-DIVISION LONGITUDINAL BAR POLE
ELECTRO MAGNETIC CHUCK
-"ELECTRO-MATIC" VARIABLE HOLD NEUTROFIER
-COOLANT TANK & PUMP
-OVER-THE-WHEEL DRESSER WITH MICROMETER ADJUSTMENT OF THE DIAMOND
-MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) (RUNS BEAUTIFULLY) **
