Location:
York, PA
Price:
$22,500 USD
Manufacturer:
FORTUNE
Model:
V-TWM-36

Specifications

Condition:
used
Year:
2001
Stock number:
15070
Size:
25" x 35"

Description

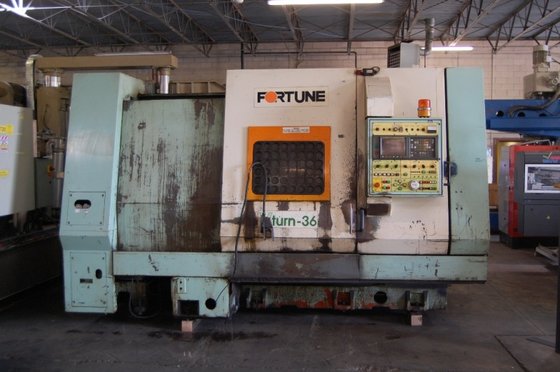

FORTUNE CNC LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $22,500.00
Stock # 15070-P
Serial # D1-1331
Model: V-TWM-36
Swing Over Bed: 25.5"
Maximum Turning Diameter: 21.6"
Swing Over Carriage: 19.6"
Center Distance: 35"
Spindle Speed: 2500 RPM
Spindle Nose: A2-8
Spindle Nose: 4.13
Hole Through Chuck Tube: 3.5"
Number of Turret Stations: 10
Tail Stock Quill Diameter: 4.33"
Tail Stock Quill Stroke: 3.94"
Tail Stock Quill Taper: #4 Morse
EQUIPPED WITH:
Fanuc OT Control
RS-232 Port
12" Kitagawa 3-Jaw Hydraulic Chuck
Box Ways
Chip Conveyor
Coolant System
45 KVA Transformer
30/35 Main Spindle Motor
Wired for 3 Phase, 60 Cycle, 230 Volts
DIMENSIONS:
Machine Size without Chip Conveyor: 156" L-R x 75" F-B x 92" H
Chip Conveyor Size: 132" L-R x 36" F-B x 64" H
Weight: 19,000 Lbs.
