2004 10" Swing 20" Centers
Location:
Alton, IL
Manufacturer:
K O Lee
Model:
C1020ND
Weight:
.......................... 3,900 Lbs.

Specifications

Condition:
used
Year:
2004
Serial number:
4101-12-04
Stock number:
153994
Swivel:
....................................... +/- 7 degrees
America:
USA NUM Corporation 603 East Diehl Road, Suite 115
Feed rate:
................................... 0.01-400 I.P.M.
Table swing:
........................................ 10"
Center taper:
................................. 48"
Equipped with:
NUM Model #1020 CNC Control (See Information on NUM below)
Spindle speed:
................................ 1,755 RPM
**special note:
NUM 1020 CNC CONTROL, WAS UPDATED IN 2012
Maximum travel:
............................... 7.5"
Headstock swivel:
....................................... 135 Degrees
Num cnc controls:
The company focuses on a number of high end CNC applications,
Spindle diameter:
............................. 3.5"
Through hole i.d:
............................ 1.3"
Approximate weight:
.......................... 3,900 Lbs.
Crossfeed feed rate:
.................................... 0.01-200 I.P.M.
Approximate dimensions:
...................... 107" L-R x 85" F-B x 70" H
Distance between centers:
..................... 20"
Max. longitudinal travel:
..................... 24"
Wheelhead: grinding wheel size:
14" x 5" x 1.5"

Description

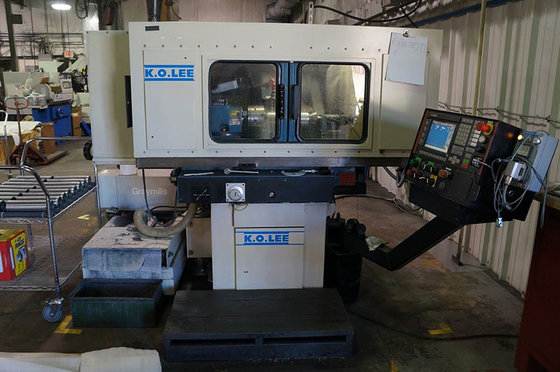

10" x 20" K.O. LEE CNC UNIVERSAL CYLINDRICAL GRINDER
MODEL: C1020ND S/N: 4101-12-04 MFG. 2004
**SPECIAL NOTE: NUM 1020 CNC CONTROL, WAS UPDATED IN 2012
Table Swing:........................................ 10"
Distance Between Centers:..................... 20"
Max. Longitudinal Travel:..................... 24"
Swivel:....................................... +/- 7 degrees
Feed Rate:................................... 0.01-400 I.P.M.
Headstock Swivel:....................................... 135 Degrees
Speed, infinitely variable in two ranges:..... 35-700 R.P.M.
Through Hole I.D.:............................ 1.3"
Center taper:................................. 48"
Crossfeed Feed Rate:.................................... 0.01-200 I.P.M.
Maximum Travel:............................... 7.5"
Wheelhead: Grinding wheel size:.......................... 14" x 5" x 1.5"
Spindle speed:................................ 1,755 RPM
Spindle Diameter:............................. 3.5"
Approximate Weight:.......................... 3,900 Lbs.
Approximate Dimensions:...................... 107" L-R x 85" F-B x 70" H
Equipped with: NUM Model #1020 CNC Control (See Information on NUM below)
Simultaneous two-axis CNC control with RS-232 &keyboard ports and manual pulse
generator. The control provides graphical representation ofgrinding and grinding
dressing cycles. A standard 2D CAD package enables the control to be programmed
at the machine for complex wheel forms and contour generation of the workpiece.
Plunge, Traverse, Shoulder Grind, Contour Dress and Grind, Taper Dress and Grind, and
Fillet Radius Dressing &Grinding capabilities
Complete Enclosure
Table and wheelhead driven by AC digital servo motors
Linear glass scale feedback for wheelhead axis
Pre-loaded linear guideways on the table and wheelhead axes
AC variable speed headstock motor
#5 Morse Taper/#3 Morse Taper center adapter
6" diameter three-jaw chuck
Diamond dresser mounted on back side of Tailstock
(2) Dead centers assemblies for providing live and dead center grinding capability
Adjustable spring loaded tailstock with #3 MT center
MOVOMATIC electronic gap eliminator
Leveling pads
GRAYMILLS external coolant pump and tank with paper band filtration
Machine Operation and Maintenance manual
5 H.P. 3/60/460 volt wheelhead motor
Machine is wired for 460 volt operation
NUM CNC Controls: The company focuses on a number of high end CNC applications,
where it undeniably has something extra to offer. Headquartered in Switzerland, and
with R&D facilities in Switzerland, France and Italy, NUM currently has more than 35
sales and service locations worldwide."
America: USA NUM Corporation 603 East Diehl Road, Suite 115
US-Naperville, IL 60563 +1 630 505 77 22 +1 630 505 77 54
Service:
F.O.B. Alton, IL (Suburb of St. Louis, MO)
** Superb Condition & Appearance **
