Location:
Navasota, TX

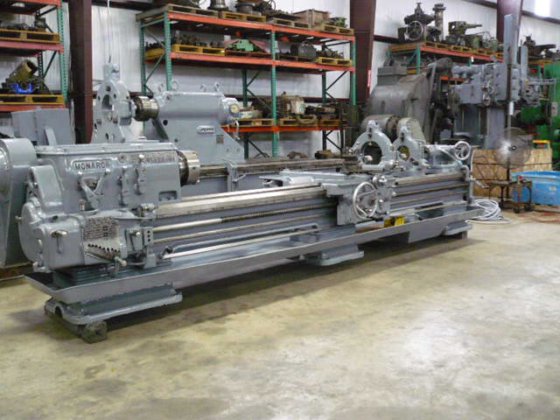

Manufacturer:
Monarch lathes
Model:
Model 20C
Spindle Nose:
D-

Specifications

Condition:
used
Year:
1953
Serial number:
37784
Stock number:
L3000169
Feeds:
.0039 To .240
Height:
72"
Weight:
15,000 Lbs.
Chuck size:
15" 4-Jaw
Main motor:
20 Hp.
Coolant pan:
Yes
Floor space:
60" X 240"
Thread dial:
Yes
Chuck size 2:
12" 3-Jaw
Spindle hole:
2"
Spindle nose:
D-
Threads inch:
3/4 To 46 TPI
Condition info:
Very Good
Threads metric:
No
Center distance:
144"
Compound travel:
4"
Tail stock taper:
# 5 Morse
Taper attachment:
Yes
Spindle speeds (27):
16 To 700 Rpm's
Swing over bed ways:
22.5
Carriage length on bed:
38"
Swing over cross slide:
12"
Hardened and ground way:
Yes
Steady rest roller type:
7" Capacity
Tail stock quill travel:
10"
Steady rest roller type 2:
12" Capacity
Tail stock quill diameter:
4"
Subcategory:
Engine

Description

Swing Over Bed Ways 22.5
Swing Over Cross Slide 12"
Compound Travel 4"
Carriage Length On Bed 38"
Center Distance 144"
Spindle Hole 2"
Spindle Speeds (27) 16 To 700 Rpm's
Spindle Nose D-
Chuck Size 15" 4-Jaw
Chuck Size 12" 3-Jaw
Feeds .0039 To .240
Threads Inch 3/4 To 46 TPI
Threads Metric No
Tail Stock Quill Diameter 4"
Tail Stock Quill Travel 10"
Tail Stock Taper # 5 Morse
Main Motor 20 Hp.
Floor Space 60" X 240"
Height 72"
Weight 15,000 Lbs.
Steady Rest Roller Type 7" Capacity
Steady Rest Roller Type 12" Capacity
Coolant Pan Yes
Taper Attachment Yes
Thread Dial Yes
Hardened And Ground Way Yes
Note: Machine Has Been Cleaned, Painted And
Cycled.
Condition Very Good
