VOORTMAN BEAM PROCESSING in Dodge

VOORTMAN BEAM PROCESSING in Dodge Center, MN

Location:
Dodge Center, MN
Manufacturer:
VOORTMAN
Model:
V550-6 PUNCH & SHEAR

Specifications

Condition:
new
Stock number:
061633
Speed:
230 FEET/MINUTE
Weight:
1,650 LBS
Marking:
MILLING
Speed 2:
0-2,500 RPM STEPLESS
Flat shear:
242 TONS AT 45 DEGREES
Flat steel:
2 X 13/64" - 19-5/8" X 1"
Angle shear:
110 TONS
Angle steel:
2" X 13/64" - 8" X 5/8"
Positioning:
SERVO MOTOR
Drill holder:
SK40
Tool changer:
1 X 5

Description

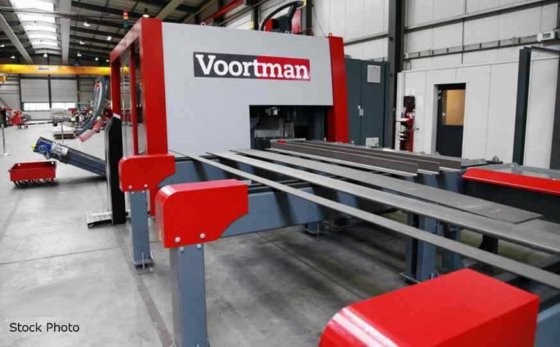

VOORTMAN (NEW) MDL V550-6 FLAT AND ANGLE
PUNCHING AND SHEARING MACHINE
FLAT STEEL ........ 2 X 13/64" - 19-5/8" X 1"
ANGLE STEEL ....... 2" X 13/64" - 8" X 5/8"
POSITIONING ....... SERVO MOTOR
WEIGHT .......... 1,650 LBS
SPEED ........... 230 FEET/MINUTE
HYDRAULIC UNIT .... 40 HP
HYDRAULIC PRESSURE. 5,075 PSI
HYDRAULIC FLOW .... 69 GALLONS/MINUTE
MARKING ........... MILLING
VERTICAL PUNCHES .. 6
PUNCH CAPACITY .... 120 TONS
HORIZONTAL PUNCHES. 1
PUNCH CAPACITY .... 77 TONS
FLAT SHEAR ........ 242 TONS AT 45 DEGREES
ANGLE SHEAR ....... 110 TONS
DRILLING UNITS .... 1 VERTICAL (OPTION)
NOMINAL DRILLING .. 40 HP
SPEED ............. 0-2,500 RPM STEPLESS
TOOL CHANGER ...... 1 X 5
DRILL HOLDER ...... SK40
DRILL DIAMETER .... 13/64" - 1-9/16"
THREAD TAPPING .... 1/4" - 15/16"
FEATURES
6-FOLD PUNCH
HORIZONTAL PUNCH
DRILLING UNIT
LAYOUT MARKING BY MILLING
FLAT STEEL SHEAR
ANGLE STEEL SHEAR
SERVO DRIVES
AUTOMATIC INFEED CROSS TRANSFERS
AUTOMATIC OUTFEED ROLLER CONVEYOR
PRODUCT OUTFEED CONVEYOR BELT
AUTOMATIC SORTING SYSTEM
