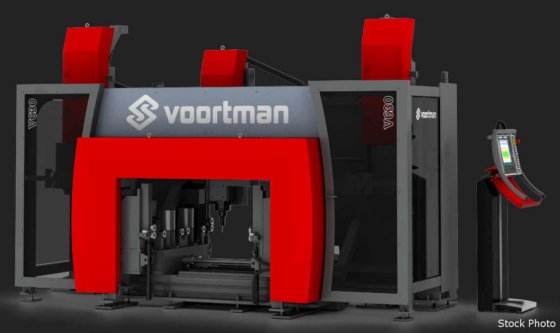

VOORTMAN V630/1000 BEAM BEAM PROCESSING

VOORTMAN V630/1000 BEAM BEAM PROCESSING in Dodge Center, MN, USA

Location:
Dodge Center, MN
Manufacturer:
VOORTMAN
Model:
V630/1000 BEAM

Specifications

Condition:
used
Stock number:
061629
Condition 2:
new
Cabin weight:
26,450 LBS
Drill holder:
SK40
Tool changer:
3 X 5
Nominal power:
40 HP
Drill diameter:
13/64" - 1-9/16"
Drilling units:
3
Thread tapping:
1/4" - 15/16"
Operating range:
18" - 41"
Speed - stepless:
0-2,500 RPM
Positioning weight:
29,100 LBS.
Positioning speed x:
130 FEET/MINUTE
Positioning speed y:
115 FEET/MINUTE
Positioning speed z:
115 FEET/MINUTE

Description

VOORTMAN (NEW) MODEL V630/1000 BEAM DRILLING
MACHINE
OPERATING RANGE .......... 18" - 41"
POSITIONING WEIGHT ....... 29,100 LBS.
DRILLING & POSITIONING ... SERVO MOTORS
POSITIONING SPEED X ...... 130 FEET/MINUTE
POSITIONING SPEED Y ...... 115 FEET/MINUTE
POSITIONING SPEED Z ...... 115 FEET/MINUTE
DRILLING UNITS ........... 3
NOMINAL POWER ............ 40 HP
SPEED - STEPLESS ......... 0-2,500 RPM
TOOL CHANGER ............. 3 X 5
DRILL HOLDER ............. SK40
DRILL DIAMETER ........... 13/64" - 1-9/16"
THREAD TAPPING ........... 1/4" - 15/16"
CABIN WEIGHT ............. 26,450 LBS
FEATURES
3 INDEPENDENT DRILLING HEADS
ROLLER FEED MEASURING SYSTEM
FEEDER TRUCK MEASURING SYSTEM
LAYOUT MARKING BY MILLING
BOTTOM SIDE MARKING
VACAD SOFTWARE
WEB AND FLANGE HEIGHT MEASURMENT
PROFILE WIDTH MEASURING
HYDRAULIC NUMBERING UNIT
CARBIDE DRILLING
