Top Seller
VOORTMAN SAWS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
VOORTMAN
Model:
VB1050 BEAM SAWING

Specifications

Condition:
new
Stock number:
061630
Feed:
SERVO MOTOR
Drive:
10 HP
Speed:
130 - 400 FT/MIN
0 degrees:
20" X 44"
15 degrees:
20" X 41-23/32"
30 degrees:
20" X 36-13/32"
45 degrees:
20" X 28"
60 degrees:
20" X 18-1/2"
Blade size:
2-1/8" X 1/16"
Inclination:
5 DEGREES

Description

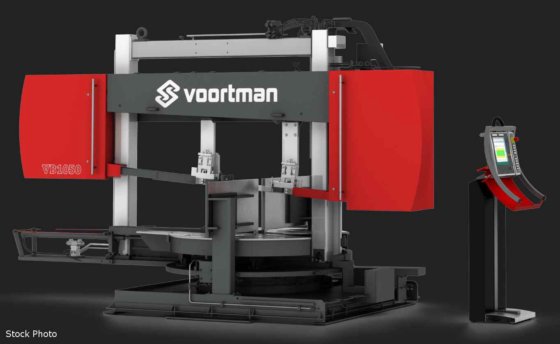

VOORTMAN (NEW) MODEL VB1050 BEAM SAWING
SAW CAPACITY
0 DEGREES ................ 20" X 44"
15 DEGREES ............... 20" X 41-23/32"
30 DEGREES ............... 20" X 36-13/32"
45 DEGREES ............... 20" X 28"
60 DEGREES ............... 20" X 18-1/2"
FEED ....................... SERVO MOTOR
DRIVE ...................... 10 HP
SPEED ...................... 130 - 400 FT/MIN
BLADE SIZE ................. 2-1/8" X 1/16"
INCLINATION ................ 5 DEGREES
FEATURES
SERVO DRIVE WITH SPINDLE
STEPLESS MITRE SETTING
FULL-STOP LENGTH MEASURING SYSTEM
FEEDER TRUCK LENGTH MEASURING SYSTEM
MICRO COOLING
BUNDLE STOP
HEIGHT DETECTION LASER
AUTOMATIC OUTFEED SYSTEM FOR SHORT PRODUCTS
PRESSURE SENSORS
ROLLER FEED MEASURING SYSTEM
SWARF BRUSH
