Top Seller
ERCOLINA BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Manufacturer:
Ercolina
Model:
TB180 TOP BENDER

Specifications

Condition:
new
Stock number:
061882
Note:
ALL CAPACITIES BASED ON A53 GRADE A
Maximum:
6" - .120 WALL
Minimum:
1-1/4"
Voltage:
440V 3 PH
Maximum 2:
6" SCH. 10
Maximum 3:
39-1/4"
Minimum 2:
1"
Minimum 3:
3 X PROFILE DIA.
Programming:
TOUCH SCREEN
Degree of bend:
0-210 DEGREES
Optional accessories:
PRICE ON REQUEST

Description

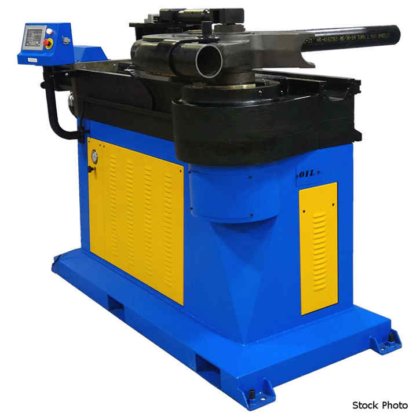

ERCOLINA (NEW) TB180 TOP BENDER - ROTARY DRAW
TUBE AND PIPE BENDING MACHINE
TUBE BENDING CAPACITIES
MINIMUM .................. 1-1/4"
MAXIMUM .................. 6" - .120 WALL
PIPE BENDING CAPACITIES
MINIMUM .................. 1"
MAXIMUM .................. 6" SCH. 10
CENTERLINE RADIUS
MINIMUM .................. 3 X PROFILE DIA.
MAXIMUM .................. 39-1/4"
DEGREE OF BEND ............. 0-210 DEGREES
NOTE: ALL CAPACITIES BASED ON A53 GRADE A
48,000 PSI TENSILE MATERIALS.
HEAVY WALL & HIGH TENSILE MATERIALS
REDUCE MACHINE CAPACITY.
BENDING SPEED-VARIABLE TO .. 1 RPM
PROGRAMMING ................ TOUCH SCREEN
UNLIMITED STORAGE WITH USB
BENDS IN EACH PROGRAM .... 12
VOLTAGE .................... 440V 3 PH
FEATURES
TOUCH SCREEN PROGRAMMING WITH SYSTEM
DIAGNOSTICS IN MULTIPLE LANGUAGES
QUICK-CHANGE TOOLING SYSTEM
DIGITAL DISPLAY OF BEND ANGLE
MATERIAL SPRINGBACK COMPENSATION
REMOTE CONTROL-BEND, RETURN, EMERGENCY STOP
COUNTERBENDING DIE VISE POSITION MONITORED
ELECTRONICALLY FOR ACCURACY/REPEATABILITY
HEAVY-DUTY STEEL GEAR CASE
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
HYDRAULIC CLAMPING SYSTEM .. POR
