Top Seller
ERCOLINA BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Price:
$12,100 USD
Manufacturer:
Ercolina
Model:
SB483PH
Capacity:
1-1/2" SCH. 40

Specifications

Condition:
new
Stock number:
061837
Angle range:
0-210 DEGREES
Programming:
NC WITH TOUCHPAD
Bending speed:
2 RPM
Clr - maximum:
8-7/8"
Clr - minimum:
2D
Motor "brushless:
2 HP 50-60 HZ
Individual programs:
30
Voltage requirement:
220 V 3 PHASE
Pipe capacity - maximum:
1-1/2" SCH. 40

Description

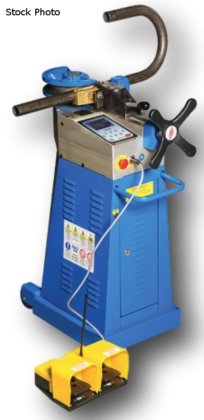

ERCOLINA (NEW) SB48 SUPER BENDER TUBE & PIPE
BENDER
CAPACITIES BASED ON MILD GRADE MATERIALS:
OUTSIDE DIAMETER - MINIMUM .. 1/4"
OUTSIDE DIAMETER - MAXIMUM .. 2" TUBE
PIPE CAPACITY - MAXIMUM ..... 1-1/2" SCH. 40
CLR - MINIMUM ............... 2D
CLR - MAXIMUM ............... 8-7/8"
ANGLE RANGE ................. 0-210 DEGREES
BENDING SPEED ............... 2 RPM
PROGRAMMING .............. NC WITH TOUCHPAD
- INDIVIDUAL PROGRAMS ....... 30
- BENDS WITHIN EACH PROGRAM . 9
VOLTAGE REQUIREMENT ......... 220 V 3 PHASE
MOTOR "BRUSHLESS" ........... 2 HP 50-60 HZ
FEATURES:
- BENDS TO 90 DEGREES IN 7 SECONDS
- BEND ANY ANGLE TO 180 DEGREES WITH
PROGRAMMABLE SPRING BACK COMPENSATION
- IDEAL FOR PRODUCING CONSISTENT QUALITY
BENDS IN LARGE DIAMETER PIPE, TUBE,
SQUARES, RECTANGULAR, SOLIDS AND OTHER
PROFILES
- PLC TOUCH SCREEN CONTROL OFFERS EASY ACCESS
TO AUTO AND MANUAL OPERATING MODES,
PROGRAMMING, SYSTEM DIAGNOSTICS AND MULTIPE
LANGUAGE CAPABILITY
- PATENTED QUICK-CHANGE TOOLING SYSTEM WITH
MULTIPLE RADII AVAILABLE
- DIGITAL COUNTERBEND DIE POSITIONING
- REMOTE FOOT PEDAL FOR HANDS-FREE OPERATION
- PATENTED SWING-AWAY COUNTERBENDING DIE VISE
- PORTABLE WITH BASE WHEELS AND LIFT HANDLE
- ONE-YEAR LIMITED WARRANTY
FOB
