ERCOLINA BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Manufacturer:
Ercolina
Model:
TB100 TOP BENDER
Capacity:
3" SCH. 40

Specifications

Condition:
new
Stock number:
061719
Motor:
3.25 HP @ 480V
Angle range:
0-210 DEGREES
Programming:
TOUCH SCREEN
Clr - maximum:
18"
Clr - minimum:
2D
Voltage requirement:
220 OR 440V 3 PH
Optional accessories:
PRICE ON REQUEST
Pipe capacity - maximum:
3" SCH. 40

Description

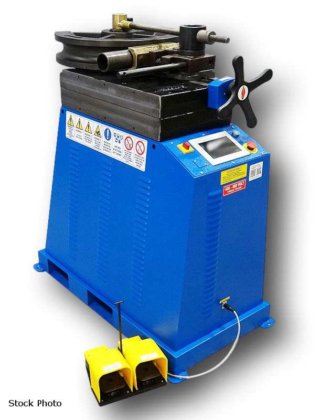

ERCOLINA (NEW) TB100 TOP BENDER-TUBE AND PIPE
CAPACITIES BASED ON MILD GRADE MATERIALS:
OUTSIDE DIAMETER - MINIMUM ... 1/4"
OUTSIDE DIAMETER - MAXIMUM ... 4" TUBE
PIPE CAPACITY - MAXIMUM ...... 3" SCH. 40
CLR - MINIMUM ................ 2D
CLR - MAXIMUM ................ 18"
ANGLE RANGE .................. 0-210 DEGREES
BENDING SPEED - VARIABLE TO .. 1.3 RPM
PROGRAMMING .................. TOUCH SCREEN
- UNLIMITED STORAGE WITH USB
- BENDS WITHIN EACH PROGRAM .. 12
VOLTAGE REQUIREMENT ...... 220 OR 440V 3 PH
MOTOR ........................ 3.25 HP @ 480V
FEATURES:
- BEND ANY ANGLE TO 180 DEGREES WITH
INDEPENDENT MATERIAL SPRING BACK
COMPENSATION FOR EACH BEND
- IDEAL FOR PRODUCING CONSISTENT QUALITY
BENDS IN LARGE DIAMETER PIPE, TUBE,
SQUARES, RECTANGULAR, SOLIDS AND OTHER
PROFILES
- PLC TOUCH SCREEN CONTROL OFFERS EASY ACCESS
TO AUTO AND MANUAL OPERATING MODES,
PROGRAMMING, SYSTEM DIAGNOSTICS AND
MULTIPLE LANGUAGE CAPABILITY
- PATENTED QUICK-CHANGE TOOLING SYSTEM WITH
MULTIPLE RADII AVAILABLE
- DIGITAL DISPLAY OF COUNTERBEND DIE AXIS
AND BEND ANGLE
- HAND-HELD REMOTE CONTROL FOR BEND, RETURN
AND EMERGENCY STOP FUNCTIONS
- PATENTED SWING-AWAY COUNTERBENDING DIE VISE
- AUTO LOAD SENDING IMPROVES BEND PRODUCT-
IVITY WHILE PROTECTING MACHINE COMPONENTS
- ENGINEERED HEAVY-DUTY STEEL GEAR CASE
- ELECTRICAL COMPONENTS UL, CSA & CE APPROVED
- NO HYDRAULIC COMPONENTS, REDUCES COST AND
IMPROVES BEND ACCURACY
- ONE-YEAR LIMITED WARRANTY
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
2-AXIS POSITIONER ................. POR
