Location:
Dodge Center, MN, USA
Manufacturer:
Edwards
Model:
HAT 1010 10 TON BENDER

Specifications

Condition:
new
Stock number:
061625

Description

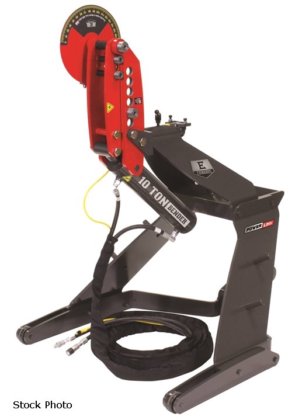

EDWARDS (NEW) MODEL HAT 1010 10 TON TUBE/PIPE
BENDER
INCLUDES:
1) EDWARDS BENDER
2) EDWARDS PORTA POWER
1) BENDER SPECIFICATIONS:
HEAVY DUTY ALL STEEL CONSTRUCTION
SMOOTH, FAST OPERATION
180 DEGREE BEND CAPACITY
EASY TO USE HAND CONTROLS
OPERATES HORIZONTALLY OR VERTICALLY
HEAVY DUTY ROLLING AND LOCKING STAND
AUTO STOP FEATURE FOR REPEATABLE BENDS
QUICK DISCONNECT HOSES
2" (ID) SCHEDULE 40 PIPE CAPACITY
2-1/2" (OD) .095" TUBE CAPACITY
2-1/4" .083" CHROMOLY CAPACITY
DIE SETS SOLD SEPARATELY
ONE YEAR WARRANTY
2) EDWARDS PORTA POWER
ELECTRIC MOTOR ......... 5 HP, 1 PHASE
VOLTS .................. 230 V
RPM .................... 1725 RPM
AMP .................... 14 AMP
HYDRAULIC PUMP SIZE .... 3-1/2 GPM-SINGLE
VALVE PRESSURE ......... 2600 PSI MAX
RESERVOIR .............. 7 GALLONS
PORTA POWER OPTIONS ........ PRICE ON REQUEST
5 HP, 3 PHASE, 440/480 VOLT, 7 AMP ... POR
5 HP, 3 PHASE, 575 VOLT, 7 AMP ....... POR
5 HP, 1 PHASE, 208/240 VOLT, 26 AMP .. POR
