Top Seller
ERCOLINA BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Price:
$12,900 USD
Manufacturer:
Ercolina
Model:
050PLUS TOP BENDER

Specifications

Condition:
new
Stock number:
061604
Tube:
1/4" 2-1/2"
Programming:
1-TOUCH BEND
Bending speed:
1.2 RPM
Degree of bend:
0-210 DEGREES
Centerline radius:
2D 11-7/8"
Voltage requirement:
220V, 1 PHASE
Optional accessories:
PRICE ON REQUEST

Description

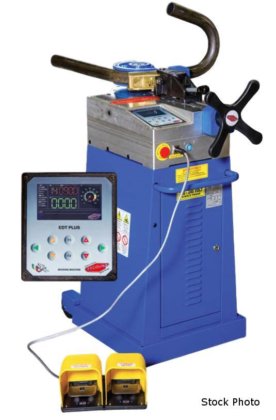

ERCOLINA (NEW) 050PLUS TOP BENDER FOR TUBE &
PIPE
MINIMUM MAXIMUM
TUBE ........................ 1/4" 2-1/2"
CENTERLINE RADIUS ........... 2D 11-7/8"
DEGREE OF BEND .............. 0-210 DEGREES
BENDING SPEED ............... 1.2 RPM
PROGRAMMING ................. 1-TOUCH BEND
ANGLE CONTROL WITH SPRINGBACK
VOLTAGE REQUIREMENT ......... 220V, 1 PHASE
MATERIAL TYPE MAX DIA MAX WALL THICKNESS
PIPE 2.0" SCH 40
MILD STEEL TUBE 2.5" 0.120"
SOFT BRASS 2.5" 0.157"
STAINLESS STEEL 2.5" 0.065"
HYDRAULIC TUBE 2.5" 0.203"
HARD COPPER 2.5" 0.236"
ALUMINUM 2.5" 0.236"
ROUND SOLIDS 1.5" NA
RECT. SOLIDS 0.5" X 2.0" NA
RECT. TUBE 1.0" X 2.0" 0.120"
SQUARE TUBE 2.0" X 2.0" 0.203
SOLID SQUARE 1.6" X 1.6" NA
FEATURES:
- IDEAL FOR PRODUCING CONSISTENT QUALITY
BENDS IN PIPE, TUBE, SQUARES, RECTANGULAR,
SOLIDS AND OTHER PROFILES
- EASY 1-TOUCH CONTROL ALLOWS ANY OPERATOR TO
PROGRAM AND AUTOMATICALLY STORE BEND ANGLE
- LARGE EASY-TO-READ COLOR CODED CONTROL
DISPLAYS ALL CURRENT INFO IN REAL TIME
- SEPARATE DISPLAY OF MATERIAL SPRING BACK
FOR GREATER ACCURACY ON VARIETY OF MATERIAL
- BEND ANY ANGLE TO 180 DEGREES
- SINGLE BENDING SPEED
- INITIATE BEND CYCLE FROM THE CONTROL PANEL
OR FOOT PEDAL
- QUICK-CHANGE TOOLING SYSTEM WITH MULTIPLE
RADII AVAILABLE
- SWING-AWAY COUNTERBENDING DIE VISE
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
MATERIAL POSITIONING TABLE ........ POR
TOOLING KITS ...................... POR
