Top Seller
BAILEIGH BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Price:
$21,395 USD
Manufacturer:
Baileigh
Model:
RDB-350-TS

Specifications

Condition:
new
Stock number:
061592
Aluminum:
3"
Chromolly:
2.5"
Aluminum 2:
3.5"
Mild steel:
2.5"
Minimum od:
0.24"
Maximum clr:
24"
Mild steel 2:
3"
Stainless steel:
2"
Stainless steel 2:
3"
Power requirements:
220 V, 3 PH
Mild steel solid rod:
1.5"
Minimum center line radius:
0.5"

Description

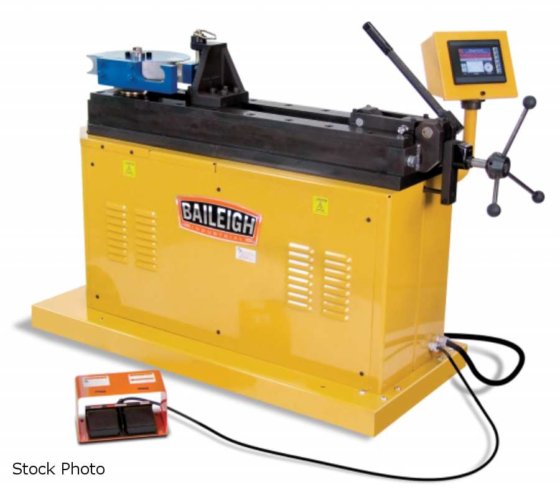

BAILEIGH (NEW) MODEL RDB-350-TS ROTARY DRAW
BENDER
PIPE (SCHEDULE 40):
- MILD STEEL .................... 2.5"
- ALUMINUM ...................... 3"
- STAINLESS STEEL ............... 2"
ROUND TUBE (WALL):
- MILD STEEL .................... 3"
- ALUMINUM ...................... 3.5"
- STAINLESS STEEL ............... 3"
- CHROMOLLY ..................... 2.5"
MILD STEEL SOLID ROD ............ 1.5"
MILD STEEL SQUARE TUBE (WALL) ... 3"
MINIMUM OD ...................... 0.24"
MAXIMUM SPEED TO 180 DEGREES .... 16 SECONDS
MINIMUM CENTER LINE RADIUS ...... 0.5"
MAXIMUM CLR* .................... 24"
* MAXIMUM CENTER LINE RADIUS IS
DEPENDENT ON MATERIAL OUTSIDE DIAMETER
POWER REQUIREMENTS .............. 220 V, 3 PH
STANDARD FEATURES:
- COMPUTER PROGRAMMABLE
- PROGRAMMER HOLDS 170 JOBS WITH 10 BENDS/JOB
- EASY TO USE TOUCH SCREEN CONTROLS
- QUICK RELEASE COUNTER DIE SYSTEM
- FAST, 16 SECONDS TO 180 DEGREES
- CAN BEND 360 DEGREES LEFT OR RIGHT WITH
OPTIONAL TOOLING
- ACCEPTS OPTIONAL POSITIONING TABLE
