Top Seller
ERCOLINA BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Price:
$4,600 USD
Manufacturer:
Ercolina
Model:
070 MEDI BENDER
Capacity:
1" SCH. 10

Specifications

Condition:
new
Stock number:
061514
Motor:
2 HP 50-60 HZ
Angle range:
0-210 DEGREES
Programming:
ROTARY DIAL/LED
Bending speed:
2.2 RPM
Clr - maximum:
6-7/8"
Clr - minimum:
2D
Voltage requirement:
120 V 1 PHASE
Optional accessories:
PRICE ON REQUEST
Pipe capacity - maximum:
1" SCH. 10

Description

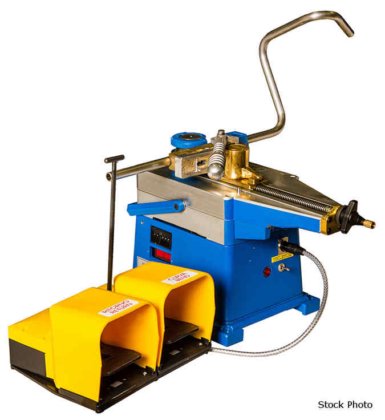

ERCOLINA (NEW) MODEL 070 MEDI BENDER TUBE &
PIPE BENDER
CAPACITIES BASED ON MILD GRADE MATERIALS:
OUTSIDE DIAMETER - MINIMUM .. 1/4"
OUTSIDE DIAMETER - MAXIMUM .. 1-1/4" TUBE
PIPE CAPACITY - MAXIMUM ..... 1" SCH. 10
CLR - MINIMUM ............... 2D
CLR - MAXIMUM ............... 6-7/8"
ANGLE RANGE ................. 0-210 DEGREES
BENDING SPEED ............... 2.2 RPM
PROGRAMMING ................. ROTARY DIAL/LED
VOLTAGE REQUIREMENT ......... 120 V 1 PHASE
MOTOR ....................... 2 HP 50-60 HZ
FEATURES:
- PORTABLE MACHINE IDEAL FOR FABRICATORS AND
CONTRACTORS WITH JOB SITE BENDING APPS
- BENDS TO 90 DEGREES IN 6 SECONDS
- BEND ANY ANGLE TO 180 DEGREES WITH PROGRAM-
MABLE MATERIAL SPRING BACK COMPENSATION
- PROGRAMMABLE BEND ANGLES WITH LED DISPLAY
- PATENTED QUICK-CHANGE TOOLING SYSTEM WITH
MULTIPLE RADII AVAILABLE
- REMOTE FOOT PEDAL FOR HANDS-FREE OPERATION
- PATENTED SWING-AWAY COUNTERBENDING DIE VISE
- NO HYDRAULIC COMPONENTS
- SHIPS WITH CARRYING CASE AND TOOL KIT
- ONE-YEAR LIMITED WARRANTY
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
220 VOLT .......................... POR
