BAILEIGH RDB-150-AS in Dodge Center,
Location:
Dodge Center, MN, USA
Manufacturer:
Baileigh
Model:
RDB-150-AS

Specifications

Condition:
new
Stock number:
060776

Description

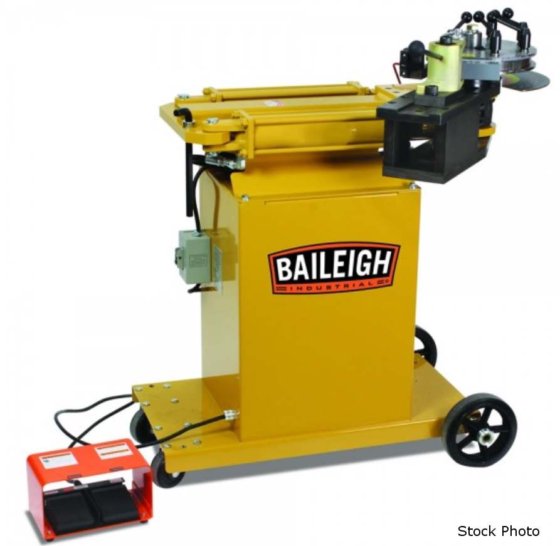

BAILEIGH (NEW) MODEL RDB-150-AS ROTARY DRAW
BENDER
PIPE (SCHEDULE 40):
- MILD STEEL .................... 2"
- ALUMINUM ...................... 2"
- STAINLESS STEEL ............... 1.5"
ROUND TUBE (WALL):
- MILD STEEL .................... 2.5"
- ALUMINUM ...................... 2.5"
- STAINLESS STEEL ............... 2.375"
- CHROMOLLY ..................... 2"
MILD STEEL SOLID ROD ............ 1.25"
MILD STEEL SQUARE TUBE (WALL) ... 2"
MINIMUM OD ...................... 0.25"
MAXIMUM SPEED TO 180 DEGREES .... 30 SECONDS
MINIMUM CENTER LINE RADIUS ...... 0.5"
MAXIMUM CLR* .................... 9.5"
* MAXIMUM CENTER LINE RADIUS IS
DEPENDENT ON MATERIAL OUTSIDE DIAMETER
POWER REQUIREMENTS .............. 110 VOLTS
INCLUDES OPTIONAL AUTO-STOP FOR BEND
REPEATABILITY
STANDARD FEATURES:
- BENDS TO 180 DEGREES IN ONE SHOT
- LOW PRESSURE INDUSTRIAL HYDRAULIC SYSTEM
- USES STANDARD BAILEIGH DROP ON DIE SETS FOR
FAST TOOLING CHANGES
- REPLACABLE BRONZE BUSHINGS AT ALL PIVOT
POINTS WITH GREASE ZERKS
