Top Seller
BAILEIGH BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Price:
$10,495 USD
Manufacturer:
Baileigh
Model:
RDB-250

Specifications

Condition:
new
Stock number:
061472
Aluminum:
2"
Chromolly:
2"
Aluminum 2:
2.5"
Mild steel:
2"
Minimum od:
0.25"
Maximum clr:
9"
Mild steel 2:
2.5"
Stainless steel:
1.5"
Stainless steel 2:
2.375"
Power requirements:
220 VOLTS
Mild steel solid rod:
1.25"
Minimum center line radius:
0.5"

Description

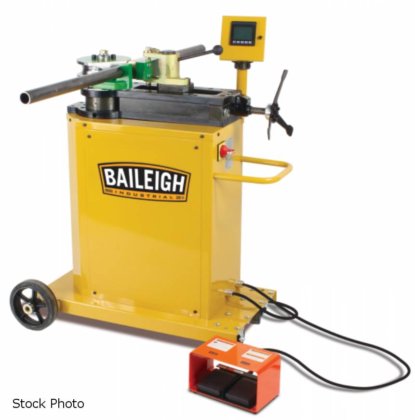

BAILEIGH (NEW) MODEL RDB-250 ROTARY DRAW
BENDER
PIPE (SCHEDULE 40):
- MILD STEEL .................... 2"
- ALUMINUM ...................... 2"
- STAINLESS STEEL ............... 1.5"
ROUND TUBE (WALL):
- MILD STEEL .................... 2.5"
- ALUMINUM ...................... 2.5"
- STAINLESS STEEL ............... 2.375"
- CHROMOLLY ..................... 2"
MILD STEEL SOLID ROD ............ 1.25"
MILD STEEL SQUARE TUBE (WALL) ... 2"
MINIMUM OD ...................... 0.25"
MAXIMUM SPEED TO 180 DEGREES .... 9 SECONDS
MINIMUM CENTER LINE RADIUS ...... 0.5"
MAXIMUM CLR* .................... 9"
* MAXIMUM CENTER LINE RADIUS IS
DEPENDENT ON MATERIAL OUTSIDE DIAMETER
POWER REQUIREMENTS .............. 220 VOLTS
STANDARD FEATURES:
- COMPUTER PROGRAMMABLE
- PROGRAMMER HOLDS 170 JOBS WITH 10 BENDS/JOB
- TOUCH SCREEN
- SIX BENDING SPEEDS
- FAST, 9 SECONDS TO 180 DEGREES
- PORTABLE
- CAN BEND 360 DEGREES LEFT OR RIGHT WITH
OPTIONAL TOOLING
- ACCEPTS OPTIONAL POSITIONING TABLE
