Top Seller
BAILEIGH BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Manufacturer:
Baileigh
Model:
RDB-500

Specifications

Condition:
new
Stock number:
060905
Aluminum:
3.5"
Chromolly:
3.5"
Mild steel:
3"
Minimum od:
0.25"
Maximum clr:
20"
Stainless steel:
2.5"
Stainless steel 2:
3.5"
Power requirements:
220 V, 3 PH
Mild steel solid rod:
2"
Minimum center line radius:
0.5"

Description

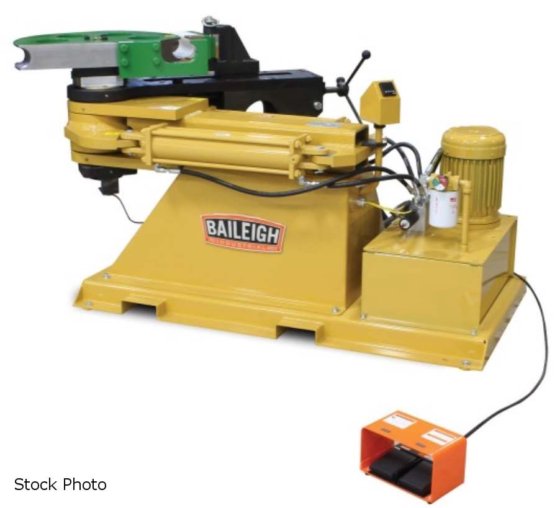

BAILEIGH (NEW) MODEL RDB-500 ROTARY DRAW
BENDER
PIPE (SCHEDULE 40):
- MILD STEEL .................... 3"
- ALUMINUM ...................... 3.5"
- STAINLESS STEEL ............... 2.5"
ROUND TUBE (WALL):
- MILD STEEL .................... 3"
- ALUMINUM ...................... 3.5"
- STAINLESS STEEL ............... 3.5"
- CHROMOLLY ..................... 3.5"
MILD STEEL SOLID ROD ............ 2"
MILD STEEL SQUARE TUBE (WALL) ... 3"
MINIMUM OD ...................... 0.25"
MAXIMUM SPEED TO 180 DEGREES .... 36 SECONDS
MINIMUM CENTER LINE RADIUS ...... 0.5"
MAXIMUM CLR* .................... 20"
* MAXIMUM CENTER LINE RADIUS IS
DEPENDENT ON MATERIAL OUTSIDE DIAMETER
POWER REQUIREMENTS .............. 220 V, 3 PH
STANDARD FEATURES:
- AUTO STOP FOR BEND REPEATABILITY
- BENDS TO 180 DEGREES IN ONE SHOT
- LOW PRESSURE INDUSTRIAL HYDRAULIC SYSTEM
- USES STANDARD BAILEIGH DROP ON DIE SETS FOR
FAST TOOLING CHANGES
- REPLACABLE BRONZE BUSHINGS AT ALL PIVOT
POINTS WITH GREASE ZERKS
- INFINITE TOOLING POSSIBILITIES
