Top Seller
ERCOLINA BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Price:
$18,700 USD
Manufacturer:
Ercolina
Model:
030 MEGABENDER

Specifications

Condition:
new
Stock number:
060965
Voltage:
220 OR 440V 3 PH
Programming:
NC WITH TOUCHPAD
Bending speed:
0.6 - 2.2 RPM
Degree of bend:
0-210 DEGREES
Bends per program:
9
Individual programs:
30
Optional accessories:
PRICE ON REQUEST

Description

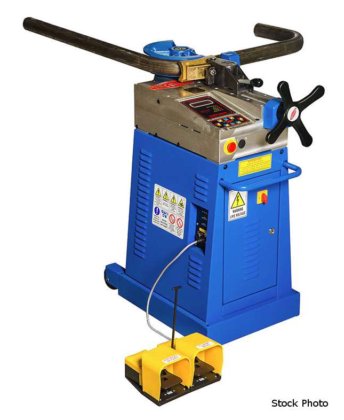

ERCOLINA (NEW) MEGABENDER 030 ROTARY DRAW
TUBE AND PIPE BENDER
TUBE - MAXIMUM CAPACITY .... 3"
TUBE - MINIMUM CAPACITY .... 1/4"
PIPE - MAXIMUM CAPACITY .... 2-1/2" SCH 10
CENTERLINE RADIUS-MAXIMUM .. 15"
CENTERLINE RADIUS-MINIMUM .. 2 X PROFILE DIA
DEGREE OF BEND ............. 0-210 DEGREES
ALL CAPACITIES BASED ON A53 GRADE A 48,000
PSI TENSILE MATERIALS. HEAVY WALL AND HIGH
TENSILE MATERIALS REDUCE MACHINE CAPACITY.
BENDING SPEED .............. 0.6 - 2.2 RPM
PROGRAMMING ................ NC WITH TOUCHPAD
INDIVIDUAL PROGRAMS ...... 30
BENDS PER PROGRAM ........ 9
VOLTAGE .................... 220 OR 440V 3 PH
FEATURES:
- IDEAL FOR PRODUCING CONSISTENT QUALITY
BENDS IN PIPE, TUBE, SQUARES, SOLIDS AND
OTHER PROFILES
- TOUCH SCREEN PROGRAMMING WITH SYSTEM
DIAGNOSTICS IN MULTIPLE LANGUAGES
- QUICK-CHANGE TOOLING SYSTEM
- DIGITAL DISPLAY OF BEND ANGLE
- MATERIAL SPRINGBACK COMPENSATION
- COUNTERBENDING DIE VISE POSITION MONITORS
ELECTRONICALLY FOR ACCURACY & REPEATABILITY
- PORTABLE WITH BASE WHEELS AND LIFT HANDLE
- FOOT PEDAL CONTROL FOR HANDS-FREE OPERATION
- HEAVY-DUTY GEAR CASE
- ONE-YEAR LIMITED WARRANTY
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
MANDREL UPGRADE ................... POR
2 AXIS POSITIONER ................. POR
TUBE & PIPE TOOLING KITS........... POR
EASY PART LAYOUT SOFTWARE ......... POR
SQUARE TOOLING .................... POR
