Top Seller
ERCOLINA BENDERS, PIPE & TUBE
Location:
Dodge Center, MN
Price:
$15,400 USD
Manufacturer:
Ercolina
Model:
TB60-V2T4
Capacity:
2" SCH. 40

Specifications

Condition:
new
Stock number:
060967
Motor:
2 HP 50-60 HZ
Angle range:
0-210 DEGREES
Programming:
NC WITH TOUCHPAD
Clr - maximum:
15"
Clr - minimum:
2D
Individual programs:
30
Voltage requirement:
440V 3 PHASE
Optional accessories:
PRICE ON REQUEST
Pipe capacity - maximum:
2" SCH. 40
Bending speed - variable:
1.7 OR 3.4 RPM

Description

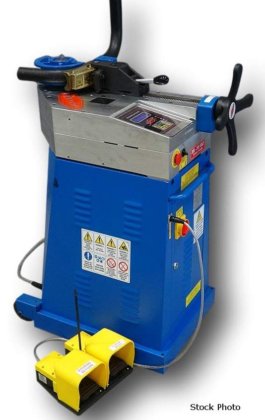

ERCOLINA (NEW) TB60-V2T4 TUBE & PIPE BENDER
CAPACITIES BASED ON MILD GRADE MATERIALS:
OUTSIDE DIAMETER - MINIMUM ... 1/4"
OUTSIDE DIAMETER - MAXIMUM ... 2-1/2" TUBE
PIPE CAPACITY - MAXIMUM ...... 2" SCH. 40
CLR - MINIMUM ................ 2D
CLR - MAXIMUM ................ 15"
ANGLE RANGE .................. 0-210 DEGREES
BENDING SPEED - VARIABLE ..... 1.7 OR 3.4 RPM
PROGRAMMING ............... NC WITH TOUCHPAD
- INDIVIDUAL PROGRAMS ........ 30
- BENDS WITHIN EACH PROGRAM .. 9
VOLTAGE REQUIREMENT .......... 440V 3 PHASE
MOTOR ........................ 2 HP 50-60 HZ
FEATURES:
- BENDS TO 90 DEGREES IN 7 SECONDS
- BEND ANY ANGLE TO 180 DEGREES WITH PROGRAM-
MABLE MATERIAL SPRING BACK COMPENSATION
- IDEAL FOR PRODUCING CONSISTENT QUALITY
BENDS IN LARGE DIAMETER PIPE, TUBE,
SQUARES, RECTANGULAR, SOLIDS AND OTHER
PROFILES
- PLC TOUCH SCREEN CONTROL OFFERS EASY ACCESS
TO AUTO AND MANUAL OPERATING MODES,
PROGRAMMING, SYSTEM DIAGNOSTICS AND
MULTIPLE LANGUAGE CAPABILITY
- PATENTED QUICK-CHANGE TOOLING SYSTEM WITH
MULTIPLE RADII AVAILABLE
- DIGITAL CONTERBEND DIE POSITIONING
- REMOTE FOOT PEDAL FOR HANDS-FREE OPERATION
- PATENTED SWING-AWAY COUNTERBENDING DIE VISE
- PORTABLE WITH BASE WHEELS AND LIFT HANDLE
- ONE-YEAR LIMITED WARRANTY
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
2-AXIS POSITIONING TABLE .......... POR
220 VOLT .......................... POR
