Top Seller
JET BRAKES in Dodge Center,
Location:
Dodge Center, MN
Price:
$1,399 USD
Manufacturer:
JET Tools
Model:
754105 BPB-1650
Capacity:
16 GAUGE

Specifications

Condition:
new
Stock number:
061880
Fingers:
NUMBER .. WIDTH
Beam adjustment:
5/8"
Finger nose angle:
45 DEGREES
Maximum box depth:
4"
Finger nose radius:
1/32"
Mild steel capacity:
16 GAUGE
Maximum lift of beam:
1-1/4"
Bending length capacity:
50"
Subcategory:
Brakes
Subcategory 2:
Box & pan

Description

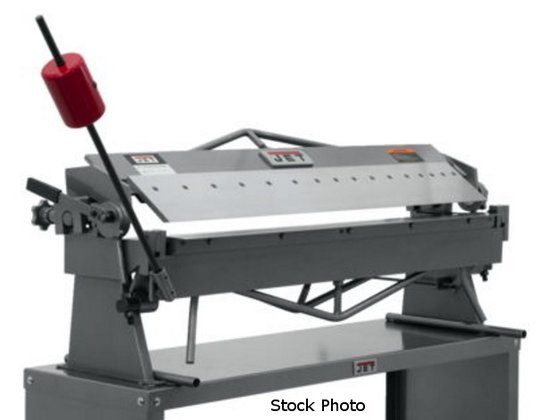

JET (NEW) MODEL 754105 BPB-1650 BENCH BOX &
PAN BRAKE
MILD STEEL CAPACITY .............. 16 GAUGE
BENDING LENGTH CAPACITY .......... 50"
MAXIMUM BOX DEPTH ................ 4"
MAXIMUM LIFT OF BEAM ............. 1-1/4"
BEAM ADJUSTMENT .................. 5/8"
FINGERS ................ NUMBER .. WIDTH
.......................... 4 ..... 2"
.......................... 6 ..... 3"
.......................... 6 ..... 4"
FINGER NOSE ANGLE ................ 45 DEGREES
FINGER NOSE RADIUS ............... 1/32"
FEATURES
WITH FINGERS INSTALLED, IT CAN BE USED AS
A FULL-LENGTH NOSE BAR, TURNING THE MACHINE
INTO A STRAIGHT BENDING BRAKE
STOP ROD FOR REPEATABLE BENDING
16 SECTIONED FINGERS ARE EASILY REMOVED FOR
BOX BENDING AND SPECIAL FORMING OPERATIONS
